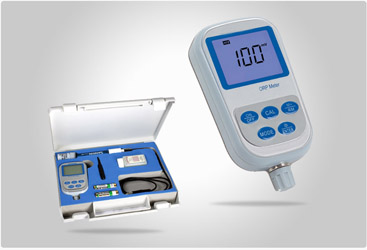

IndustrialPortable ORP Meter
Part No. PHME-712
suited for industrial and mining factories, water treatment engineering and environmental protection field, especially suited in field and on-site.
Features:
Built-in microprocessor chips, intelligent functions such as data storage, function set-up, automatic power-off and low voltage display.
Supplied with plastic ORP electrode, fast response and accurate result.
Supplied with ORP standard solution and portable case
Waterproof IP57 protection level
| Category |
Product Name |
Basic features and specifications |
| ORP |
Measuring range (mV/ORP/EH)
|
-1999mV ~ 0 ~ 1999mV |
|
Resolution
|
1mV |
|
Accuracy
|
Meter:+/-0.1% FS, Overall: +/-15mV |
| Other Technical Parameters |
Data storage
|
200 groups |
| Storage content |
Series number, measuring value measuring unit and temperature, |
|
Power
|
Two AA batteries (1.5V x2) |
|
Size and weight
|
meter: (65×120×31)mm/180g; Suitcase: (360×270×76)mm/1.6Kg |
| Quality and safety certification |
ISO9001:2000, CE and CMC |
| Working Condition |
Environment temperature
|
5 ~ 35 ℃(0.01grade) |
|
Environmental humidity
|
≤85% |
|
IP rating
|
IP57 Dustproof and waterproof |
Package:
1. Model SX712 ORP electrode 1unit
2. 301Pt-S plastic ORP combination electrode 1pc
3. 222mV ORP standard solution (50mL) 1btl
4.Screw driver 1pc
5. Spare AA batteries 2pcs
6. Operation manual 1pc
7. Carrying case 1unit
Optional Accessories
|
Accessory Category
|
Description
|
Specifications
|
|
ORP combination electrode
|
301Pt-S plastic ORP combination electrode
|
Suited for regular ORP measurement, 8 pin connector
|
|
Electrode soaking solution
|
pH(ORP)combination electrode soaking solution
|
500mL/250mL/50mL(bottle)
|
|
ORP standard solution
|
222 mV ORP standard solution
|
250mL/100mL/50mL(bottle)
|
|
Portable case
|
Portable case(255×210×50)mm
|
Match single electrode
|
|
Portable case(360×270×76)mm
|
Match Multiple electrodes
|
