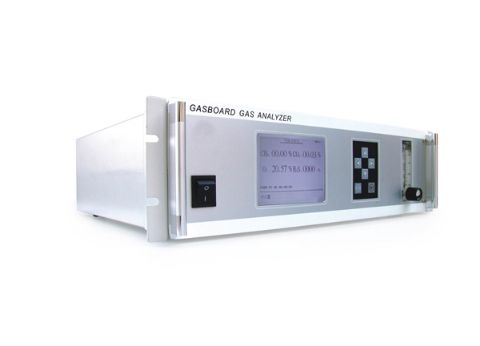

Online Infrared Biogas Analyzer For CH4 ,CO2 ,H2S and O2

   Used for measurement of the concentration of CH_{4 ,}CO_{2 ,}H₂S and O₂  in sample gases simultaneously . It is based on the single source two beams non-dispersion infrared (NDIR) method for CH_{4 ,}CO_{2 ,}fuel cell method (ECD) for H₂S and O₂.

    Landfill, water treatment, CDM project ,anaerobic digestion and other fermentation processes

1.  Up to 4 gases measurement with combination of NDIR and ECD gas sensor technology.

2.  Simple construction with pulsable infrared source and two beams technology.

3.  Constant temperature control for gas bench for high stability.

4.  320*240 LCD with menu operation.

5.  Repeatability:±0.5% FS.

6.  Linearity: ±1% FS.

7.  Zero/Span drift: ±2%FS



Measure Gas	Measure Method	Measure Range	Resolution	Precision	Error
CO2	NDIR	50%	0.0 1%	≤2% FS	≤2%
CH4	NDIR	100%	0. 01%	≤2% FS	≤2%
H2S	ECD	9999ppm	1ppm	≤3% FS	≤2%
O2	ECD	25%	0.01%	≤3% FS	≤2%





Gas flow	0.7 -1.2 L/min
Pressure of gas inlet	<1Bar
Sampling gas requirement	Remove water vapor, dust(<1um) and oil etc.
Response Time	<15s (NDIR)
Warm-up time	15min
Communication port	RS232(optional)
Output	4-20 mA（according to the requirement）



Work temperature	0～50℃
Relative humidity	5～85%
Ambient air pressure	86～108kPa
Power supply	220V±44V AC 50Hz±1Hz
Dimension	483mm×373mm×140mm（W×L×H）
Weight	12kg
