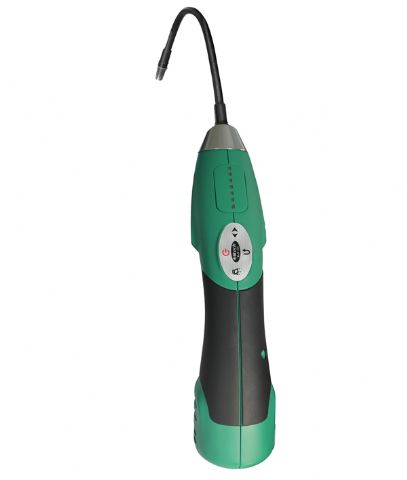

The core technology of GADE-300 refrigerant leak detector lies in the sensitivity of nano-materials to the refrigerant. It contains a nano=materialed semiconductor sensor to detect the halogen refrigerant. Due to the adoption of high accurate and sensitive material of sensor, GADE -300 is particularly sensitive for all regrigerant, and could successfully eliminate false signals. The sensor will neither be damaged by the big doses of refrigerant nor be reduced the sensitivity along with the usage time.

Main Features:
----Semiconductor sensor
----Audio alarm signal, and its frequency changes aloong the leakage density
----Viaul display of seven leakage levels, with red and blue LEDlights
----Lithium battery powered, rechargeable external battery charger
----High efficiency air sampling pump could quickly response to and liminate the agses.
----Innovative and fashimonal design
----Rapid detection of regrigerant leakage points
----Extended flexible probe, sensitivity adjustable
----Low battery indicator and mute control
----Sensor fault detection alarm
----Fast warm-up ,quick response time°c
Technical parameters:
----Detecting Gas: R22,4134a, R407c, R404a, R410a, R507(AZ-50) and all other CFCs, HCFCs, HFCs.
----Sensitivity: 3g/yr(0.1 oz/yr) R134A
----Ambient Environment: Temperature 0°c~50°c; humidity:≤85% RH (non condensing)
----Storyge Environment: Temperature -20°c~60°c; humidity:≤85% RH (non condensing)
----Warm up time: <60s
----Response time: <10s
----Display: Seven and dual-color LED indication; red indicates refrigerant leakage amount; blue indicates the sensitivity level
----Alarm: The shorter of the buzzer alarm interval, the higher of leakage density; The more of the lighted red LED, the higher density of leakage
----Power supply: 3.7V Li 2200mAh
----Standby time: >4h
----Dimension: 3000mm*65mm*65mm
