Concentration Leak Combustible Gas Detector Gas Indicator

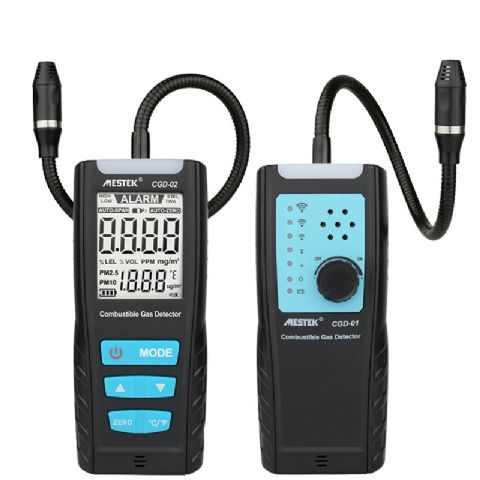

CGD-01 Choose A
CGD-02 Choose B
Features:
-High sensitivity, fast response and easy operation.
-CGD-01 check leak type: imported sensor, sensitivity can be adjusted, reaction time is less than 10 seconds, sound and light alarm, diffusion sampling, hose length 300mm.
-CGD-02 digital concentration type: imported sensor, sensitivity is not adjustable, reaction time is less than 10 seconds, sound and light alarm + vibration, diffusion sampling, hose length 300mm, LCD display (with backlight), concentration range: 0-100% LEL, calibration clear function, environmental temperature measurement -10~50℃.
-Detecting multiple flammable gases: methane / natural gas, gas / carbon monoxide, gasoline / alcohol, propane, benzene, trichloroethane, ethane, n-butane, halogenated hydrocarbon.
-Can be widely used in petroleum, chemical, environmental protections, metallurgy, gas transmission and distribution, coking, municipal engineering, home business and other fields to detect the leakage of combustible gases.
-Flexible serpentine hose for no dead ends.
-High sensitivity gas detection probe for more accurate detection.
-Multiple alarms for more complex measurement environments.
Specifications:
Material: ABS
Color: black
Model: CGD-01
Product type:
CGD-01: check leak type
Sensor:
CGD-01: import
Sensitivity:
CGD-01: adjustable
Preheat time:
CGD-01: less than 30 seconds
Alarm mode:
CGD-01: sound and light alarm
Sampling method:
CGD-01: diffusion type
Probe hose:
CGD-01: 300mm
Operating hours:
CGD-01: more than 1 hour
Display method:
CGD-01: no
Measuring range:
CGD-01: no
Tolerance scope:
CGD-01: no
Resolution:
CGD-01: no
Alarm value setting:
CGD-01: no
Concentration alarm value:
CGD-01: no
Screen backlight:
CGD-01: no
Calibration function:
CGD-01: no
Temperature range:
CGD-01: no
Temperature error:
CGD-01: no
Battery: 3 * AA battery (not included)
Package size: 180 * 70 * 30mm / 7.1 * 2.8 * 1.2in
Package weight: 650g / 1.4lb
Material: ABS
Color: black
Model: CGD-02 (optional)
Product type:
CGD-02: digital concentration type
Sensor:
CGD-02: import
Sensitivity:
CGD-02: not adjustable
Preheat time:
CGD-02: less than 30 seconds
Alarm mode:
CGD-02: sound and light alarm + vibration
Sampling method:
CGD-02: diffusion type
Probe hose
CGD-02: 300mm
Operating hours:
CGD-02: more than 1 hour
Display method:
CGD-02: LCD display
Measuring range:
CGD-02: 0-100% LEL
Tolerance scope:
CGD-02: ±5%
Resolution:
CGD-02: 1% LEL
Alarm value setting:
CGD-02: high and low two points freely set
Concentration alarm value:
CGD-02: adjustable
Screen backlight:
CGD-02: yes
Calibration function:
CGD-02: can be cleared
Temperature range:
CGD-02: -10~50℃
Temperature error:
CGD-02: ±1.5℃
Battery: 3 * AA battery (not included)
Package size: 180 * 70 * 30mm / 7.1 * 2.8 * 1.2in
Package weight: 650g / 1.4lb
Package list:
1 * Detector
1 * User Manual
1 * Case
