Suitable for high precision conductivity measurement of science research,quality control, biotechnology and fine chemistry industry ,etc.

1. 0.5 rating precision conductivity meter, suitable for high precision conductivity measurement of science research and quality control.
2. Equips Conductivity/ATC glass electrode. Its measurement result is fast and precise. Can choose 25℃, 20℃ and 18℃ three kinds of basis temperature.
3.Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.
4. There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.
5.Automatically recognize 8 kinds of conductivity standard solution. User can choose anyone from two series of solutions: Europe & USA series and China series
6.Equips Conductivity/ATC electrode. Its measurement result is fast and precise.
7. Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration.
8. Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
9.Conductivity measurement mode has the function of non-linear temperature compensation for high purity water.
10. Meter has the only product serial number.
11. Dustproof and waterproof meter meets IP54 standards.

Conductivity	Measuring range           Resolution Accuracy Temp. compensation range Electrode constant Reference temperature	Conductivity:(0.00~20.00)μS/cm (20.0~200.0)μS/cm (200~2000)μS/cm  (2.00~20.00)mS/cm (20.0~200.0)mS/cm (200~2000)mS/cm(K=10) Resistivity:(0 ~ 100)MΩ·cm TDS:  (0 ~ 100)g/L Salinity: (0 ~ 100)ppt 0.01/0.1/1μS/cm  0.01/0.1/1 mS/cm Meter:+/-0.5% FS,connect meter with electrode:+/-0.80% FS (0 ~ 50)℃(automatic ) 0.1 / 0.5 / 1 / 5 / 10 / 50 / 100  cm-1 25℃, 20℃ and 18℃
Temperature	Measuring range Resolution Accuracy	-10℃~ 110℃ 0.1℃ 5~ 60℃range:+/-0.4℃  other range:+/-0.8℃
Other Technical Parameters:	Data storage Storage content   Power Communication connector Size and weight Quality and safety certification	300 groups Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time DC9V/300mA RS232 160 * 190 * 70mm/880g ISO9001:2008, CE and CMC
Working Condition	Environment temperature Environmental humidity IP rating	5 ~ 35 ℃(0.01grade) 15 ~ 30 ℃(0.001grade) ≤75% IP54 Dustproof and waterproof

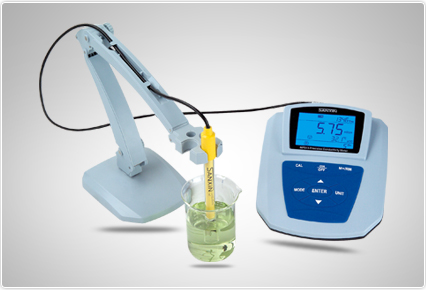

1. Model PHME515 lab conductivity meter 1 unit
2. Model 602 flexible electrode holder 1pc
3. 2401T-M plastic pH/ATC three-in-one combination electrode 1 pc
4. 1408μS/cm conductivity standard solution (50mL) 2 bottles
5. 9V power adapter 1pc
6. RS-232 communication cable 1pc
7. MP515 communication software CD 1pc
8. Operation manual 1 unit
9. Brief operation manual 1 unit
10. Packing List 1 pc

Accessory Categry	Description	Specifications
Conductivity Electrode	DJS-0.1-M Pure water conductivity electrode	K=0.1 cm-1,Automatic temperature compensation, for testing the conductivity of high pure water, 4-pin plug
	2401-M Glass conductivity electrode	K=1.0 cm-1,Automatic temperature compensation, precision laboratory test for conductivity, 4-pin plug.
	2301-M Plastic conductivity electrode	K=1.0 cm-1,Automatic temperature compensation for laboratory and field testing, 4-pin plug.
	2310-M Plastic conductivity electrode	K=10 cm-1,Automatic temperature compensation, used to test seawater and concentrated salt water, etc., 4-pin plug
	Glass flow cell	Equipped with DJS-0.1-M electrode
Temperature Electrode	MP500 Temperature electrode	Stainless steel housing, fast response, high accuracy, RCA plugs
Conductivity Calibration Solution	84 μS/cm Conductivity Calibration Solution	500mL/250mL/50mL(bottle)
	1413 μS/cmConductivityCalibration Solution	500mL/250mL/50mL(bottle)
	12.88 mS/cmConductivityCalibration Solution	500mL/250mL/50mL(bottle)
	146.6 μS/cmConductivityCalibration Solution	500mL/250mL/50mL(bottle)
	1408 μS/cmConductivityCalibration Solution	500mL/250mL/50mL(bottle)
	12.85 mS/cmConductivityCalibration Solution	500mL/250mL/50mL(bottle)
Electrode soaking	pH(ORP)Combination Electrode Soaking Solution	500mL/250mL/100mL(bottle)
	10-5 mol/L Sodium ion electrode soaking Solution	Equipped with 7801Sodium electrode . 500mL/250mL/100mL(bottle)
Electrode holder	Model 602 Flexible Electrode Holder	Nice appearance of the arc-type bracket, you can turn 360 degrees and vertical lift
	Model 601Stirring Type Electrode Holder	The electrode holder and magnetic stirrer combination of new products.
	Model 600 Electrode Holder	Cheap simple electrode holder
