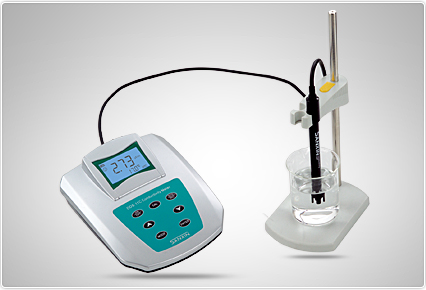

Lab Conductivity Meter
Basic model bench type conductivity meter, which is used for normal solution conductivity measurement
Main Features:
1.With built-in microprocessor chip, it has automatic calibration, automatic temperature compensation, data storage, and feature setting etc.
2.Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration.
3.Automatically recognize 8 kinds of conductivity standard solution. User can choose anyone from two series of solutions: Europe & USA series and China series
4.Equips Conductivity/ATC plastic electrode. Its measurement result is fast and precise.
Specifications:
Category |
Product Name |
Basic features and specifications |
Conductivity |
Measuring Range |
Conductivity:(0 ~199.9)μS/cm (200~1999)μS/cm (2.00~19.99)mS/cm (20.0~199.9)mS/cm |
Resolution |
0.1/1μS/cm 0.01/0.1 mS/cm |
Accuracy |
Meter:+/-1.0% FS, with electrode: +/-1.5% FS |
Temp. Compensation range |
(0 ~ 50)℃ (automatic or manual) |
Electrode Constant |
0.1 / 1 / 10 cm-1 |
Other Technical Specifications |
Data Storage |
50groups |
Storage Content |
Measuring value serial number, measuring value, and temperature |
Power |
DC9V |
Size and Weight |
(160*190*70)mm/750g(Meter) |
Quality and Safety Certification |
ISO9001:2008, CE and CMC |
Working Condition |
Environment Temperature |
5 ~ 35 ℃(0.01) |
Environmental Humidity |
≤85% |
Standard Package:
1. PHME-11C conductivity meter 1 unit
2. 2301-F plastic conductivity electrode(K=1,ATC) 1 pc
3. 1413μS/cm conductivity standard solution (50mL) 1bottle
4. 9V power adapter 1 pc
5. 600 electrode holder 1 pc
6. Operation manual 1 pc
Optional Accessories:
Accessory Categry
|
Description
|
Specifications
|
Conductivity Electrode
|
2401-F Glass conductivity electrode
|
K=1.0 cm-1,Automatic temperature compensation, for laboratory and precision conductivity testing , 4-pin plug.
|
2301-F Plastic conductivity electrode
|
K=1.0 cm-1,Automatic temperature compensation for laboratory and field testing, 4-pin plug
|
Temperature Electrode
|
MP500 Temperature electrode
|
Stainless steel housing, fast response, high accuracy, RCA plugs
|
Conductivity Calibration Solution
|
84 μS/cm Conductivity Calibration Solution
|
500mL/250mL/50mL(bottle)
|
1413 μS/cmConductivityCalibration Solution
|
500mL/250mL/50mL(bottle)
|
12.88 mS/cmConductivityCalibration Solution
|
500mL/250mL/50mL(bottle)
|
146.6 μS/cmConductivityCalibration Solution
|
500mL/250mL/50mL(bottle)
|
1408 μS/cmConductivityCalibration Solution
|
500mL/250mL/50mL(bottle)
|
12.85 mS/cmConductivityCalibration Solution
|
500mL/250mL/50mL(bottle)
|
Electrode holder
|
Model 602 Flexible Electrode Holder
|
Nice appearance of the arc-type bracket, you can turn 360 degrees and vertical lift
|
Model 601Stirring Type Electrode Holder
|
The electrode holder and magnetic stirrer combination of new products.
|
Model 600 Electrode Holder
|
Cheap simple electrode holder
|
