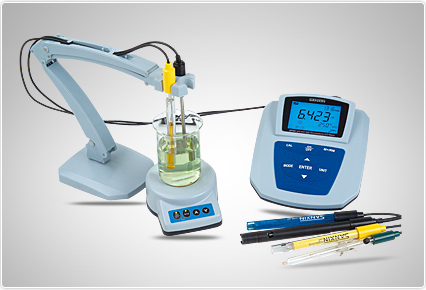

China Multifuctional pH/mV/ISE/Conductivity/DO Meter

Product Name: China Multifuctional pH/mV/ISE/Conductivity/DO Meter

Product Numbers: PHME-551

Product Specifications: 0.00 ~ 14.00 pX

Product Unit: self-diagnose

Product Remark: temperature compensation

Product Class:Measuring and Testing Instruments > Environmental Test > Conductivity Meter

Product Details

【DateTime:2013-12-19 Browse:】【Font: Big Mid Small】【Print】【Close】

China pH/mV/ISE/Conductivity/DO Meter

For multi-parameter high precision measurement laboratory measuring instrument, covering the pH, ion concentration, conductivity and dissolved oxygen, more than 10 kinds of electrochemical parameters. Suitable for petroleum, chemical, pharmaceutical, power plants and environmental protection industries in the field of education and research more widely used.

Main Features:

1. Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.
2. There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.
3. Automatically recognize 13 kinds of pH buffer solution. User can choose anyone from four series of standard buffer solutions: Europe & USA series, NIST series, CHINA series and Self-defined series.
4. High purified water and ammonia added purified water pH measuring mode can be set up, especially suitable for electric power and petrochemical industry
5. With EH redox potential measuring mode can directly display ORP value which against standard potential of hydrogen electrode.
6. Automatically recognize 8 kinds of conductivity standard solution. User can choose anyone from two series of solutions: Europe & USA series and China series.
7. Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration.
8. Automatically select conductivity measurement range, when measuring high pure water, equipment automatically enter into temperature compensation of nonlinear model, especially for electricity, microelectronics and the pharmaceutical industry requirements.
9. Equips new type of DO electrode which has function of automatic temperature compensation and automatic salinity compensation as well as automatic air pressure compensation inside meter to make DO measuring mode has temperature, air pressure and salinity automatic compensation, easy to use, accurate to measure.
10. Polarogram type DO electrode has special electrode calibration cap. Only needs 3 to 5 minutes for electrode polarization. Electrode adopts combination diaphragm cap which very convenient to use. Each DO electrode equips with three spare diaphragms caps.
11. There are 10 kinds of common ions can be selected in the ion concentration measuring mode, user also can self-define other ions.
12. Can switch 4 kinds of concentration unit : pX, mol/L, mg/L and ppm
13. Meter has the only product serial number.
14. Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.

Specifications:

pH	Measuring range Resolution Accuracy Input current Input impendance Stability Temp. compensation range	(-1.999 ~ 19.999)pH 0.1/0.01/0.001 pH Meter:±0.002 pH, connect meter with electrode:±0.01pH ≤1×10-12 A ≥3×1012 Ω +/-0.002 pH/3h (0 to 100) ℃(automatic or manual)
mV	Measuring range(mV/ORP/EH) Resolution Accuracy	-1999.9mV ~ 0 ~ 1999.9mV 0.1mV +/-0.03% FS
Ion Concentration	Measuring range Display unit Accuracy Temp. compensation range	0.00 ~ 14.00 pX pX,mol/L,mg/L,ppm Meter:+/-0.5 % reading(monovalent), +/-1.0 % reading (bivalent) 0 to 60 ℃(automatic or manual)
Conductivity	Measuring range Resolution Accuracy Temp. compensation range Electrode constant Reference temperature	Conductivity:(0.00~20.00)μS/cm (20.0~200.0)μS/cm (200~2000)μS/cm (2.00~20.00)mS/cm (20.0~200.0)mS/cm (200~2000)mS/cm(K=10) Resistivity:(0 ~ 100)MΩ·cm TDS: (0 ~ 100)g/L Salinity:(0 ~ 100)ppt 0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm Meter:+/-0.5% FS,connect meter with electrode:+/-0.80% FS (0 ~ 50)℃(automatic ) 0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1 25℃, 20℃ and 18℃
Dissolved Oxygen	Measuring range Resolution Accuracy Response time Residual current Temp. compensation range Salinity compensation range Air pressure compensation Automatic calibration Electrode type	(0 ~ 40.00)mg/L(ppm) (0 ~ 200.0)% 0.1/0.01 mg/L(ppm) 1/0.1 % Meter:+/-0.10 mg/L,connect meter with electrode:+/-0.40 mg/L ≤30 s(25℃, 90% response) ≤0.1 mg/L (0 ~ 45)℃(automatic) (0 ~ 45)ppt(automatic) (80 ~ 105)kPa(automatic) Air saturated by water; water saturated by air Polarogram type
Temperature	Measuring range Resolution Accuracy	-10℃~ 110℃ 0.1℃ 5~ 60℃range:+/-0.4℃ other range:+/-0.8℃
Other Technical Parameters:	Data storage Storage content Power Communication connector Size and weight Quality and safety certification	300 groups Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time DC9V/300mA RS232 160 * 190 * 70mm/880g ISO9001:2008, CE and CMC
Working Condition	Environment temperature Environmental humidity IP rating	5 ~ 35 ℃(0.01grade) 15 ~ 30 ℃(0.001grade) ≤75% IP54 Dustproof and waterproof

Package:

1. Model PHME-551 pH/mV/ISE/Cond/DO meter 1set
2. Model 602 flexible electrode holder 1pc
3. Model 901 intelligent stirrer 1set
4. 201T-M plastic pH/ATC three-in-one combination electrode 1pc
5. 2503-C glass pH combination electrode 1pc
6. MP500 temperature electrode 1pc
7. 2401-M conductivity electrode 1pc
8. DO500 DO electrode 1pc
9. Model 6213 double salt bridge reference electrode 1pc
10. pH standard buffer solution(pH4.00,pH6.86,pH9.18/50ml) 1btl/each
11. 1413μS/cm conductivity standard solution (50 mL) 2btls
12. 9V power adapter (meter use) 1pc
13. 6V power adapter (stirrer use) 1pc
14. DO503 membrane cap (DO electrode use) 3pc
15. DO502 DO electrode inner solution (30 mL) 1btl
16. Cathode polishing paper 2pcs
17. B628 stirring bead 3pcs
18. AA battery 4units
19. RS-232 communication cable 1pc
20. MP551 communication software disk 1pc
21. Operation manual 1unit
22. Brief operation instruction 1unit
23. Packing List 1pc

Optional Accessories:

Accessory Categry	Description	Specifications
pH combination electrode	201-C plastic combination pH electrode	Suitable for routine pH measurements, widely used, BNC connector.
	200-C plastic combination pH electrode	Suitable for routine pH measurements, long continuous, high precision, BNC plug.
	206-C plastic combination pH electrode	Smaller diameter electrode, suitable for small diameter container in a test, BNC connector
	201T-M plastic three-in-one combination pH electrode	Simultaneous measurement of pH and temperature, automatic temperature compensation, BNC + RCA plugs.
	2501-C glass combination pH electrode	For precise pH test, routine laboratory use, BNC plug.
	2503-C glass combination pH electrode	For precise pH test, used to measure complex samples, BNC plug.
	2503D-C glass combination pH electrode	For low-temperature solution and pure water pH measurement, BNC plug.
	2503G-C glass combination pH electrode	Suitable for high temperature solution pH measurements, BNC plug
	2503S-C glass combination pH electrode	For acid and high-temperature solution pH measurements, BNC plug.
	2015P-C plane combination pH electrode	For the surface and trace solution pH measurement, BNC plug.
Ion electrode
	7801 Sodium ion electrode	Used to test the concentration of sodium ion,BNC plug
	CA501 Calcium composite electrode	used for testing Calcium concentration,BNC plug
	Calcium electrode probe	Used with CA501 electrode
	F502 Fluoride electrode	Used to test Fluoride concentration,BNC plug
	CL502 Chloride electrode	Used to test the concentration of chloride ion,BNC plug
	BR502 Bromide electrode	Used to test the concentration of bromide ion,BNC plug
	I502 Iodide Electrode	Used to test the concentration of iodide ion,BNC plug
	CU502 Copper electrode	Used to test the copper concentration,BNC plug
	K502 Potassium electrode	Used to test the concentration of potassium ion,BNC plug
	NO502 Nitrate electrode	Used to test the concentration of nitrate ion,BNC plug
	NH501 Ammonia electrode	Used to test the ammonia concentration,BNC plug
Reference Electrode	6211 Reference electrode	Suitable for routine measurements, banana plugs.
	6212 Reference electrode	Equipped with the 7801 sodium ion electrode, banana plugs
	6213 Reference electrode	The first and second salt bridge solution can be chosen, for all measurement occasions, banana plugs.
	6215 Reference electrode	Most ion electrode for supporting the use, banana plugs
Conductivity Electrode	DJS-0.1-M Pure water conductivity electrode	K=0.1 cm-1,Automatic temperature compensation, for testing the conductivity of high pure water, 4-pin plug
	2401-M Glass conductivity electrode	K=1.0 cm-1,Automatic temperature compensation, precision laboratory test for conductivity, 4-pin plug.
	2301-M Plastic conductivity electrode	K=1.0 cm-1,Automatic temperature compensation for laboratory and field testing, 4-pin plug.
	2310-M Plastic conductivity electrode	K=10 cm-1,Automatic temperature compensation, used to test seawater and concentrated salt water, etc., 4-pin plug
	Glass flow cell	Equipped with DJS-0.1-M electrode
DO Electrode	DO500 DO electrode	Polarographic-type DO electrode,For laboratory and field using, 8-pin plug
DO Electrode attachment	DO503 DO electrode membrane cap	Combined membrane cap，Dedicated to the DO500 DO electrode, size: 3 / group
	DO502 DO electrode electrolyte	Added electrolyte, dedicated to the DO500 DO electrode, specifications: 30mL/bottle
	DO501 Cathode polishing paper	Polishing paper, dedicated to clean DO500 DO electrode cathode, Size: 2 / group.
ORP Composite electrode	301Pt-C Plastice ORP combination electrode	ORP measurement for conventional, wide range of uses, BNC plug
ORP Composite electrode	3501Pt –C Glass ORP combination electrode	ORP measurement of routine laboratory, test stability, fast response, BNC plug
Temperature Electrode	MP500 Temperature electrode	Stainless steel housing, fast response, high accuracy, RCA plugs
pH Buffer	pH4.00 buffer	500mL/250mL/50mL(bottle)
	pH6.86 buffer	500mL/250mL/50mL(bottle)
	pH7.00 buffer	500mL/250mL/50mL(bottle)
	pH9.18 buffer	500mL/250mL/50mL(bottle)
	pH10.01 buffer	500mL/250mL/50mL(bottle)
Ion standard solution	10^-1mol/L Na+ Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L Ca2+ Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L F- Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L Cl- Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L Br- Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L I- Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L K+ Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L Cu2+ Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L Ammonium ion Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L NO3 Standard Solution	500mL/250mL/100mL(bottle)
Conductivity Calibration Solution	84 μS/cm Conductivity Calibration Solution	500mL/250mL/50mL(bottle)
	1413 μS/cmConductivityCalibration Solution	500mL/250mL/50mL(bottle)
	12.88 mS/cmConductivityCalibration Solution	500mL/250mL/50mL(bottle)
	146.6 μS/cmConductivityCalibration Solution	500mL/250mL/50mL(bottle)
	1408 μS/cmConductivityCalibration Solution	500mL/250mL/50mL(bottle)
	12.85 mS/cmConductivityCalibration Solution	500mL/250mL/50mL(bottle)
Electrode soaking	pH（ORP）Combination Electrode Soaking Solution	500mL/250mL/100mL(bottle)
Electrode soaking	10^-5mol/L Sodium ion electrode soaking Solution	Equipped with 7801Sodium electrode . 500mL/250mL/100mL(bottle)
Electrode add liquid	3.5mol/L KCl（AgClSaturated) reference solution	250mL/50mL/30mL(bottle)
	1mol/LPotassium nitrate (KNO3) reference solution	For chlorine, bromine, iodine and copper ion test, and equipped with 6215 reference electrode, 250mL/100mL/30mL(bottle)
	1mol/L Sodium chloride (NaCl) reference solution	Test for potassium, and equipped with 6215 reference electrode,250mL/100mL/30mL(bottle)
	0.1mol/L Cesium chloride (CsCl) reference solution	Test for sodium,and equipped with 6212 reference electrode,250mL/100mL/30mL(bottle)
	Ammonia electrode inner solution	Test for ammonium ion, and equipped with NH501 ammonia electrode,250mL/100mL/30mL (bottle)
	Calciumelectrode inner solution	equipped with CA501 Calcium electrode, 250mL/100mL/30mL(bottle)
Electrode add liquid	3.5mol/L KCl（AgClSaturated) reference solution	500mL/250mL/100mL(bottle)
	1mol/LPotassium nitrate (KNO3) reference solution	For chlorine, bromine, iodine and copper ion test, and equipped with 6215 reference electrode, 250mL/100mL/30mL(bottle)
	1mol/L Sodium chloride (NaCl) reference solution	Test for potassium, and equipped with 6215 reference electrode,250mL/100mL/30mL(bottle)
	0.1mol/L Cesium chloride (CsCl) reference solution	Test for sodium,and equipped with 6212 reference electrode,250mL/100mL/30mL(bottle)
	Ammonia electrode inner solution	Test for ammonium ion, and equipped with NH501 ammonia electrode ,250mL/100mL/30mL(bottle)
	Calcium electrode inner solution	equipped with CA501 Calcium electrode, 250mL/100mL/30mL(bottle)
ORP standard solution	222 mV ORP Standard solution	250mL/100mL/50mL(bottle)
Electrode holder	Model 602 Flexible Electrode Holder	Nice appearance of the arc-type bracket, you can turn 360 degrees and vertical lift
	Model 601Stirring Type Electrode Holder	The electrode holder and magnetic stirrer combination of new products.
	Model 600 Electrode Holder	Cheap simple electrode holder
