Chemical oxygen demand (COD) test is commonly used to indirectly measure the amount of organic compounds in water.Most applications of COD determine the amount of organic pollutants found in surface water,  COD is often measured as a rapid indicator of organic pollutant in water. It is normally measured in both municipal and industrial wastewater treatment plants and gives an indication of the efficiency of the treatment process. COD is measured on both influent and effluent water. The efficiency of the treatment process is normally expressed as COD Removal, measured as a percentage of the organic matter purified during the cycle. It is expressed in milligrams per liter (mg/L), which indicates the mass of oxygen consumed per liter of solution. Older references may express the units as parts per million (ppm).

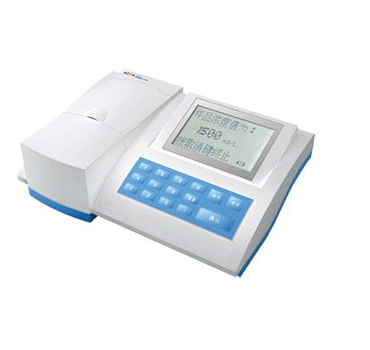

Part No: COD-571

*   English language menu and LCD display for easy use

*    It adopts dichromate colorimetric method.

*    Direct reading of COD results and no need to analyze by other means such as titration.

*    2 point calibration (zero COD and full scale calibration)

*    Measuring results can be viewed, deleted and printed. Up to 200 sets of measuring data can be stored and it can be connected with TP-16 printer.

*    It adopts digestion method of sealing reflux and can conduct simultaneous digestion of 21 samples for low energy consumption.

*    The digestion temperature can be adjusted from ambient temperature to 165℃. Also, it is equipped with over temperature alarming system.

*    The digestion time can be set from 0 to 120 min. It will be power off after response
Specifications:
1.  Measuring range: COD (0～1500)mg/L
2.  Accuracy:

          ≤150.0 mg/L: ±8%FS±1mg/L　

          150.0 mg/L~1500 mg/L:±8% reading

3.  Stability: (±2% reading)/15min

4.  Repeated error: 3% reading

5.  Power supply: AC (220±22)V;(50±1)Hz

6.  Dimension(mm): COD-571:270×280×125

                                           COD-571-1:330×228×132

7.  Weight: COD-571: 2 Kg

                    COD-571-1: 4 Kg
