| Product Name: Spectrum Analyser 9KHz-1.5GHz |
| Product Numbers: SPAN-3215 |
| Product Specifications: Range: 9KHz-1.5GHz |
| Product Unit: Resolution: 1Hz |
| Product Remark: China Manufacturer |
| Product Class:Measuring and Testing Instruments > Electronic test Instruments > Spectrum Analyzers |
|

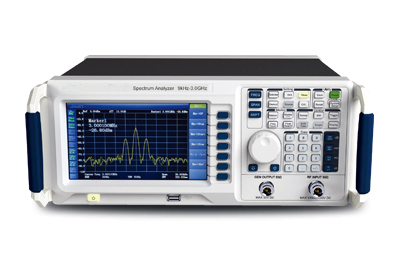

 Product Details Spectrum Analyser 9KHz-1.5GHz
Features:
--Full measuring functions and auto setting, multi-window display, convenient operation
--All-digital IF technology to realize accurate measuring, clear uncertainty during switching between base level and display scale
--Fast sweeping speed
--High resolution, available to distinguish two signals with 10Hz difference.
--Complete detection methods for different signals measurin
--Complete connectivity: USB HOST, USB DEVICE, LAN, VGA, easy for upgrade and integration
--7 Inch WVGA display
Specifications:
|
|
SPAN-3215
|
SPAN-3222
|
|
|
Frequency
|
|
Range
|
9kHz ~1.5GHz
|
9kHz~2.2GHz
|
|
|
Resolution
|
1Hz
|
|
Internal Frequency Reference
|
|
Frequency Reference
|
10MHz
|
|
Aging Rate
|
<2ppm/year
|
|
Temperature Stability
|
<2ppm
|
|
Frequency Readout Accuracy
|
|
Marker Resolution
|
span/(sweep points-1)
|
|
Marker Uncertainty
|
±(frequency indication × frequency reference uncertainty + 1% × span + 10% × resolution bandwidth + marker resolution)
|
|
Frequency Span
|
|
Frequency Span Range
|
0Hz, 100Hz~1.5GHz
|
0Hz, 100Hz~2.2GHz
|
0Hz, 100Hz~3.0GHz
|
|
Uncertainty
|
±span/(sweep points-1)
|
|
SSB Phase Noise
|
|
Carrier Offset
|
10 kHz offset
|
<-82dBc/Hz
|
|
100 kHz offset
|
<-103dBc/Hz
|
|
1 MHz offset
|
<-113dBc/Hz
|
|
Bandwidths
|
|
Resolution Bandwidth (-3dB)
|
10Hz ~ 1MHz, step 1-3-10
|
|
200 Hz, 9 kHz, 120 kHz
|
|
RBW Uncertainty
|
<5%, nominal
|
|
Resolution Filter Shape Factor(60dB: 3dB)
|
<5, nominal
|
|
Video Bandwidth (-3dB)
|
1Hz to 1MHz, step 1-3-10
|
|
Measurement Range
|
|
Range
|
DANL to +30dBm
|
|
Maximum Input Level
|
|
CW RF Power
|
+33dBm (1.0W)
|
|
Max. Damage Level
|
+40dBm (10W)
|
|
Displayed Average Noise Level (DANL)
|
|
DANL (Preamplifier Off)
|
100 kHz to 1 MHz
|
<-90 dBm, typ. -110 dBm
|
|
1 MHz to 3.0 GHz
|
<-120 dBm+3 x (f/1GHz) dB, typ. -125 dBm
|
|
DANL (Preamplifier On)
|
100 kHz to 10 MHz
|
<-90 dBm, typ. -110 dBm
|
|
10 MHz to 3.0 GHz
|
<-135 dBm+3 x (f/1GHz) dB, typ. -140 dBm
|
|
Level Display
|
|
Trace Detectors
|
Normal, Positive-peak, Negative-peak, Sample, RMS, Voltage Average, Quasi-peak
|
|
Trace Functions
|
Clear Write, Max Hold, Min Hold, Average, View, Blank
|
|
Units of Level Axis
|
dBm, dBmV, dBμV, V, W
|
|
Reference Level
|
|
Range
|
-100 dBm to +30 dBm, step 1 dB
|
|
Spurious
|
|
Image Frequency
|
<-60 dBc
|
|
Intermediate Frequency
|
<-60 dBc
|
|
Spurious Response
|
<-90 dBm, typ.
|
|
Input Related Spurious
|
Mixer level: -30 dBm
|
<-60 dBc, typ.
|
|
Sweep
|
|
Sweep Time Range
|
100Hz≤Span≤3GHz
|
10 ms to 2200 s
|
|
Span=0 Hz
|
20 μs to 2200 s
|
|
Sweep Time
Uncertainty
|
100Hz≤Span≤3GHz
|
5%, nominal
|
|
Span=0 Hz
|
0.5%, nominal
|
|
Sweep Mode
|
Continuous, single
|
|
Trigger
|
|
Trigger Source
|
Free, Video, External
|
|
External Trigger Level
|
5 V TTL level
|
|
Tracking Generator Output (SA9130-TG)
|
|
Frequency Range
|
9 kHz to 3.0 GHz
|
|
Output Power
|
-20 dBm to 0 dBm, step 1 dB
|
|
Output Flatness
|
10MHz to 3.0GHz, relative to 50 MHz
|
±3 dB
|
|
General Characteristic
|
|
Interface
|
USB_HOST, USB_DEVICE, LAN, RS232, VGA
|
|
Display
|
7 inch TFT LCD
|
|
Power Supply
|
Input Voltage
|
AC100V to 240V
|
|
Frequency
|
45Hz to 440Hz
|
|
Power Consumption
|
< 35W
|
|
Environment
|
Temperature
|
5degree to 40degree
|
|
Humidity
|
80%
|
|
Dimension & Weight
|
364×155×330mm(W×H×L), 6.0kg
|
Accessories
|
Standard
|
Power Cord
|
1
|
|
CD(Software+ Users Guide)
|
1
|
|
Options
|
Tracking Generator
|
|
N-BNC Adapter, N-SMA Adapter, N-SMA Cable, BNC-BNC Cable
|
|
USB cable, RS232 cable
|
|
|
