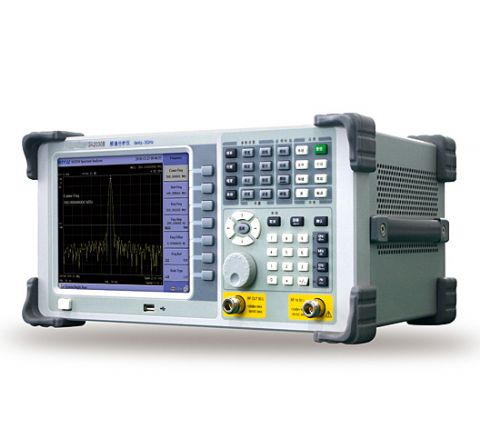

Full digital step scanning and IP technology realizing high performance and easy to operate.
Specification:
-Frequency range: 9kHz~3GHz
-Resolution Bandwidth: 10Hz~3MHz(1-10sequence)
-3G signal generator, can be used as a tracing generator and independert signal source.
-Combine frequency measure, AM and FM demodulation, adjacent-channel power measure, chromatogram function.
-8.4 inch LED disply with backlight,
-Chinese and English menu
-Interface: USB, LAN,VGA,GPIB,RS232 various communication interface USB,LAN ,VGA,GPIB,RS232
-Continuously and adjustable full digital IF
-Use the latest full digital IF design technology, realizing excellent linearity and accuracy
-Continuously variable RBW filter
-Realizing exact and predictable resolution bandwidth
-Distinguish the two signal which only have 5Hz frequency difference, reduce the average noise level.
-Similar to Gaussian shape filter, provide better filter shape factor
-Various video detection mode
-Connect PC, printer and network. Use USB, LAN and RS232 remote control, SCPI commands can quickly set up and upgrade the integrate test system
|
frequency
|
|
frequency range
|
|
9kHz to 3GHz
|
|
frequency resolution
|
|
1Hz
|
|
frequency reading accuracy
|
|
+/-（frequency scale reading*frequency standardaccuracy +1%*sweep range+10%*RBW+0.5*[sweep range/(fflying spot-1）]+1Hz)
|
|
Internal reference（10MHz）
|
ageing rate
|
<3ppm/year
|
|
temperature drift
|
<2ppm (15degree to 35 degree)
|
|
RBW
|
|
range(<1kHz option)
|
|
5Hz to 500kHz（1-10sequence), 1MHz，3MHz
|
|
seleectivity(60dB/3dB)
|
RBW≤500kHz
|
<5: 1 typical value
|
|
Accuracy
|
<5% typical value
|
|
Video bandwidth（VBW）
|
|
10Hz至3MHz
|
|
Display average noise level(DANL)(10Hz resolution bandwidth)
|
|
1MHz
|
|
-120dBm
|
|
120MHz
|
|
-124dBm
|
|
600MHz
|
|
-122dBm
|
|
1250MHz
|
|
-125dBm
|
|
1850MHz
|
|
-123dBm
|
|
2350MHz
|
|
-121dBm
|
|
2650MHz
|
|
-120dBm
|
|
3000MHz
|
|
-118dBm
|
|
Phase noise
|
|
|
|
Frequency offset 10kHz : -85dBc/Hz
|
|
|
|
Frequency offset 1MHz: -110dBc/Hz
|
|
|
remark：typical fc=500MHz，RBW<1kHz，sampling detection,trace average time≥10
|
|
Sweep time
|
|
range100Hz≤SPAN≤3GHz
|
|
10ms to 3000s
|
|
Span=0
|
|
1ms to 3000s
|
|
Sweep time
|
|
Countinus,single
|
|
frequency counter
|
|
counter resolution
|
|
1Hz,10Hz,100Hz,1kHz
|
|
counter indeterminacy
|
|
Frequency indication×frequency standard accuracy + counter accuracy
|
|
Amplitude accuracy（20 degree to 30 degree）
|
|
Overall amplitude accuracy(90%)
|
Input signal range 0dBm to -50dBm
|
±1.5dB
|
|
Amplitude
|
|
Max safe input level
|
Average continuous power
|
+33dBm
|
|
max input DC voltage
|
|
50Vdc
|
|
Input attenuator
|
|
0 to 50dB
|
|
1dB compression point
|
|
+13dBm
|
| |
|
|
|
|
Stray and residual responses
|
|
TOI
|
>30MHz
|
+10dBm
|
|
Second harmonic distortion
|
|
+40dBm
|
|
Input related stray singal
|
|
<-60dBc
|
|
Residual responses
|
|
<-85dBm
|
|
Singal generator(optional)
|
|
Frequency range
|
|
1MHz to 3GHz
|
|
output power
|
|
-30dBm to 0dBm
|
|
flatness output
|
Tracking signal source
|
±3dB
|
|
Independent source
|
±2dB
|
|
input/output
|
|
RF input/output
|
|
N type(50Ω)
|
|
USB
|
|
USB 2.0
|
|
LAN
|
|
10/100 Base-T, RJ-45connector
|
|
RS232
|
|
9pin D-SUB
|
|
Reference input/output
|
10MHz,BNC
|
Input power 0dBm to +10dBm
|
|
|
Output power 0dBm±2dB
|
|
VGA(optional)
|
800×600,60Hz
|
15pin D-SUB
|
|
GPIB(optional)
|
|
IEEE-488bus connect
|
|
AM/FM demodulation(optional)
|
|
headset jack
|
|
General parameter
|
|
internal data storage
|
|
256MB
|
|
display
|
LEDbacklight
|
8.4inches TFT-LCD
|
|
Max weight
|
|
8kg
|
|
size
|
not include locator
|
390(W)*182(H)*230(D)mm
|
|
Working temperature
|
|
0degree to 40 degree
|
|
storage temperature
|
|
-30 degree to +70 degree
|
|
power supply
|
input voltage range
|
220VAC±15%; 110VAC±15%（optional）
|
|
AC frequency range
|
40Hz to 60Hz
|
|
Power consumption
|
Max
60W
|
