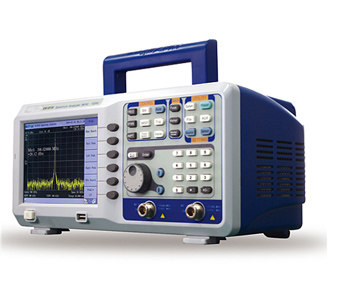

Spectrum Analyzer (9kHz~1GHz ) With AM/FM Demodulation
Zoom Browse
Product Name: Spectrum Analyzer (9kHz~1GHz ) With AM/FM Demodulation
Product Numbers: SPAN-2201
Product Specifications: Frequency Range: 9kHz~1GHz
Product Unit: Optimum sensitivity: -158dBm
Product Remark: Resolution bandwidth: 10Hz~3MHz
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Spectrum Analyzers
Product Details
【DateTime:2014-08-07 Browse:】【Font: Big Mid Small】【Print】【Close
Spectrum Analyzer (9kHz~1GHz ) With AM/FM Demodulation

Description
     SPAN-2201 series spectrum analyzer has excellent performance in technical indicators compare with current spectrum analyzer in market. 6.5 inch TFT screen, Pc connection for display as convenience as the desktop spectrum analyzer, also can be integrated into your system to develop a spectrum analysis.
Features:
- Provided most handheld spectrum analyzer test function with superior technical index
- Frequency range: 9kHz~1GHz
- Optimum sensitivity: -158dBm
- Resolution bandwidth: 10Hz~3MHz
- AM/FM demodulation, frequency count
- tracking generator
- 6.5 inch highlight TFT color LCD
- Structure Size: 330x163x165mm
- PC control software easy to save and manage test data.
- Weight: less than 4kg
Dada Sheet

Frequency range

9kHz~1GHz

Frequency resolution

1Hz

Frequency readout accuracy

±(frequency marker count*frequency benchmark precision+1%*sweep width+10%*RBW+0.5*[sweep width/(sweep point-1)]+1Hz)

Internal standard(10MHz)



Aging rate

<1ppm/year

Temperature stability

<0.1ppm  (15 Degree~35 Degree)



Resolution bandwidth

range



10Hz~500kHz(from 1 to 10 serial stepping),1MHz,3MHz

selectivity(60dB/3dB)

RBW≤500kHz

<5: 1 typical value

accuracy

<5%   typical value

Vedio bandwidth(VBW)



10Hz~3MHz



Displayed average noise level (10Hz Resolution bandwidth,radio-frequency attenuator 0dB)

frequency

Pre-amplifier off

Pre-amplifier pen

100kHz

<-105 dBm

<-125dBm

1MHz

<-132dBm

<-152 dBm

100MHz

<-135 dBm

<-155dBm

500MHz

<-130 dBm

<-149 dBm

1000MHz

<-130 dBm

<-149 dBm



Phase noise





Frequency offset 10kHz  -85dBc/Hz





Frequency offset 1MHz  -115dBc/Hz



Sweep time

Sweep width 100Hz≤SPAN≤3.6GHz



10ms~3000s

0 sweep width



1ms~3000s

Sweep mode



Serial, single



Frequency counter

resolution



1Hz, 10Hz, 100Hz, 1kHz

Uncertainly angle



Frequency count*frequency benchmark accuracy +counter resolution



Range frequency(20 Degree~30 Degree)

Synthetical range frequency(90%)

Input single range 0dBm~-50dBm

±1.5dB



range

Maximum permissible input

average continuous power

+23dBm

Maximum input dirct current voltage



50Vdc

Input attenuator range



0~30dB,1dBstepping

1dBpoint of compression



+7dBm



Stray and residual response

TOI(CTB)

>30MHz

+13dBm

SHI(cos)



+30dBm

Input related stray single



<-60dBc

residual response



<-90dBm



Trancing source(optional)

Frequency range



100kHz~1GHz

Output power



-30dBm ~ 0dBm  1dBstepping

Output flatness



±3dB





common parameter

Radio requency input/output



SMA female(50Ω)

USB



USB 1.1(equipment side)

LAN



10/100 Base-T,RJ-45connector

AM/FM demoduline





Benchmark input/out put

10MHz,BNC female

Input power  0dBm~ +10dBm

output  0dBm±2dB

Maximum size



330*163*165mm

weight



4kg

Operating temperature



0 Degree~40 Degree

Storage temprature



-40 Degree~+70 Degree

power

adapter

input

100V~240V  50/60Hz  1.5A

Power consumption



35W

Inside data storage



128MB

Upper computer software

USB, LAN

Pc display test
