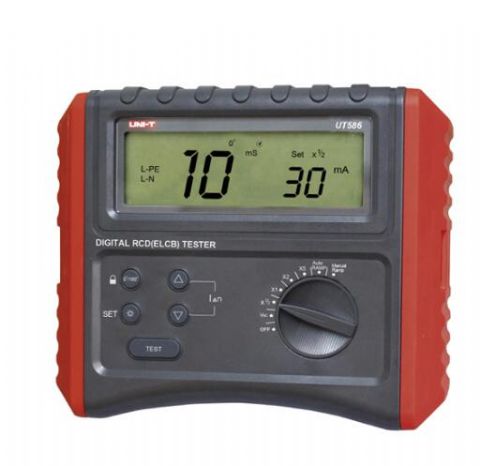

UT586 RCD ELCB Tester
UT586 is multifuctional RCD tester, With auto ramp , it can measure 10mA-1000mA trip current and trip time.
Features:
Auto power offer
Low battery indicator
LCD Backlight. it can read in the dark area
Contact Voltage Automatic Detection
| Specification |
Range |
Best Accuracy |
| Model |
|
UT586 |
| RCD Measurement |
Range Select |
Rated Operating Current |
Trip Time |
|
| X 1/2 |
10mA/20mA/30mA/100mA/200mA/300mA/
500mA/1000mA |
2000mS |
|
| X 1 |
10mA/20mA/30mA/100mA/200mA/300mA |
1000mS |
|
| 500mA/1000mA |
2000mS |
|
| X 2 |
10mA/20mA/30mA/100mA/200mA/300mA/
500mA |
200mS |
|
| X 5 |
10mA/20mA/30mA/100mA/200mA |
40mS |
|
| AUTO RAMP |
10mA/20mA/30mA/100mA/200mA/300mA/
500mA/1000mA |
300mS |
|
| MANUAL RAMP |
10mA/20mA/30mA/100mA/200mA/300mA/
500mA/1000mA |
300mS |
|
| Trip Current Accuracy |
|
10% |
| Trip Time Accuracy |
|
(0.6%+4) |
| Trip Time Resolution |
|
1mS |
| Operational Voltage(Freq.) |
230V(50Hz) |
10% |
| AC Voltage (V) (Freq.) |
60V-400V(50-60Hz) |
(3%+5) |
| Features |
| Auto Power Off |
|
YES |
| Low Battery Indication |
|
YES |
| Data Hold |
|
YES |
| LCD Backlight |
|
YES |
| Contact Voltage Automatic Detection |
|
YES |
| Over-Temperature Detection Instrumentation Devices |
|
YES |
| Lock Test Function |
|
YES |
| Connections Check Function |
Lamps Indication |
YES |
| Fuse Security |
|
YES |
| General Characteristic |
| Power |
1.5V Alkaline Batteries (LR6) X 8 |
| LCD Size |
125mm X 37mm |
| Product Color |
Red and Grey |
| Product Net Weight |
1000g |
| Product Size |
210mm X 175mm X 90mm |
| Standard Accessories |
Test Lead |
| Standard Individual Packing |
Gift Box, Tool Box, English Manual |
| Standard Quantity Per Carton |
4 PCs |
| Standard Carton Measurement |
510mm X 330mm X 330mm (0.056CBM Per Standard Carton) |
| Standard Carton Cross Weight |
15Kg |
Contrast:
| Specification |
Range |
Best Accuracy |
| Model |
|
UT583 |
UT585 |
UT586 |
| RCD Measurement |
Range Select |
Rated Operating Current |
Trip Time |
|
|
|
| X 1/2 |
10mA/20mA/30mA/100mA/300mA/500mA |
1000mS |
|
|
|
10mA/20mA/30mA/100mA/200mA/300mA/
500mA/1000mA |
2000mS |
|
|
|
| X 1 |
10mA/20mA/30mA/100mA/300mA/500mA |
1000mS |
|
|
|
| 10mA/20mA/30mA/100mA/200mA/300mA |
1000mS |
|
|
|
| 500mA/1000mA |
2000mS |
|
|
|
| X 2 |
10mA/20mA/30mA/100mA/300mA |
1000mS |
|
|
|
10mA/20mA/30mA/100mA/200mA/300mA/
500mA |
200mS |
|
|
|
| X 5 |
10mA/20mA/30mA/100mA |
200mS |
|
|
|
| 10mA/20mA/30mA/100mA/200mA |
40mS |
|
|
|
| AUTO RAMP |
10mA/20mA/30mA/100mA/300mA/500mA |
300mS |
|
|
|
10mA/20mA/30mA/100mA/200mA/300mA/
500mA/1000mA |
300mS |
|
|
|
| MANUAL RAMP |
10mA/20mA/30mA/100mA/200mA/300mA/
500mA/1000mA |
300mS |
|
|
|
| Trip Current Accuracy |
|
10% |
10% |
10% |
| Trip Time Accuracy |
|
(1%+3) |
(1%+3) |
(0.6%+4) |
| Trip Time Resolution |
|
1mS |
1mS |
1mS |
| Operational Voltage(Freq.) |
230V(50Hz) |
10% |
10% |
10% |
| AC Voltage (V) (Freq.) |
60V-400V(50-60Hz) |
(3%+5) |
(3%+5) |
(3%+5) |
| Features |
| Auto Power Off |
|
|
|
|
| Low Battery Indication |
|
|
|
|
| Data Hold |
|
|
|
|
| LCD Backlight |
|
|
|
|
| Contact Voltage Automatic Detection |
|
|
|
|
| Over-Temperature Detection Instrumentation Devices |
|
|
|
|
| Lock Test Function |
|
|
|
|
| Connections Check Function |
Lamps Indication |
|
|
|
| Fuse Security |
|
|
|
|
| General Characteristic |
| Power |
1.5V Alkaline Batteries (LR6) X 8 |
| LCD Size |
125mm X 37mm |
| Product Color |
Red and Grey |
| Product Net Weight |
1000g |
| Product Size |
210mm X 175mm X 90mm |
| Standard Accessories |
Test Lead |
| Standard Individual Packing |
Gift Box, Tool Box, English Manual |
| Standard Quantity Per Carton |
4 PCs |
| Standard Carton Measurement |
510mm X 330mm X 330mm (0.056CBM Per Standard Carton) |
| Standard Carton Cross Weight |
15Kg |
