fluence quantity

Test item

Datum condition

Working conditions

ambient temperature

All parameters

(23+ 2)

-10C~ 40C

relative humidity

All parameters

40%~60%

<80%

Phase voltage

All parameters

(100+ 1%) V

1.0V~ 1000V

Line voltage

True RMS value of line voltage

(200+ 1%) V

1.0V~ 2000V

Electric current

True RMS value

(5+ 1%) A

10mA~ 1000A

Power grid frequency

All parameters

50Hz + 0.1Hz

40Hz~70Hz

phase shift

Active power measurement

CosPhi =1

CosDiameter: 0.2~ 1

Reactive power and reactive power measurement

SinPhi =1

SinDiameter: 0.2~ 1

harmonic

All parameters

<0.1%

0%~ 100%

Voltage unbalance degree

All parameters

<10%

0%~ 100%

Instrument operating voltage

All parameters

DC9.8V+ 0.1V

DC9.5V~ 10.5V

External electric field and magnetic field

All parameters

Should avoid

Measured wire position

Measurement of current related parameters

The measured conductor in the approximate position of the geometric center of the jaw

Power Supply

Rechargeable lithium battery pack 9.6V, external charger.

Battery indicator

Battery symbol5grid Show the power, when the battery power is too low, prompted 1 minutes after the automatic shutdown.

Power waste

Current 490mA, the battery is full of electricity for about 8 hours of continuous work.

display mode

LCDColor screen, 640dots * 480dots, 5.6 inch display domain 116mm * 88mm.

Jaw size

008BTip small current clamp: 13Mm * 7.5mm;

040BCircular current clamp: 35mm * 40MM;

068BCircular current clamp: 68mm * 68mm.

Instrument size

Long and wide:240mm*170mm*68 mm.

Channel number

4Road voltage, 4 current.

Line voltage

1.0V~2000V.

Phase voltage

1.0V~1000V.

Electric current

008BCurrent clamp: 10mA~10.0A;

040BCurrent clamp: 0.10A~100A;

068BCurrent clamp: 1.0A~1000A;

Optional transformer: instrument port input current 1mA~500mA.

frequency

40Hz~70Hz.

Electric quantity parameter

WVA, Var, PF, DPF, cos, Tan, Phi Phi.

Electric energy parameters

Wh, Varh, Vah.

harmonic

Yes, 0~50Time.

Total harmonic distortion

Yes, 0~50Times, each phase.

Expert mode

Yes.

Transient recording

150Group.

Voltage flicker

Yes.

Starting current mode

Yes, 100 seconds.

Three-phase unbalance degree

Yes.

Record

300Day (record 20 parameters simultaneously, 1 points per 5 seconds).

Min / Max

Record value

There are, can be measured for a period of time the maximum and minimum value.

Give an alarm

40Different types of parameter selection, 12800 groups of alarm log.

Peak value

Yes

Phasor diagram display

Automatically.

Screenshot capacity

60A.

Menu language

English and chinese.

communication interface

USB

Automatic shutdown

In the alarm / trend chart recording / transient capture mode (waiting or in the middle), the instrument does not automatically shut down.

In other test mode, no button operation within 15 minutes, 1 minutes after the automatic shutdown.

Backlight function

There is, for the dark places and at night.

Instrument quality

Host: 1.6kg (with battery);

008BTip small current clamp: 170g * 4;

040BRound shape current clamp: 190g * 4;

068BRound shape current clamp: 510g * 4;

Test line and power adapter: 900g;

Total mass: about 7.8kg (including packaging).

Voltage test line

3m

Current clamp length

2m

Working temperature and humidity

-10C~ 40 degrees C; 80%Rh below.

Storage temperature and humidity

-10C~ 60 degrees C; 70%Rh below.

Input impedance

The input impedance of the test voltage is 1M.

Pressure

The instrument circuit and the outer shell withstand 3700V/50Hz sine wave alternating current voltage for 1 minutes.

insulation

Between the instrument line and the jacket shell is larger than 10M.

structure

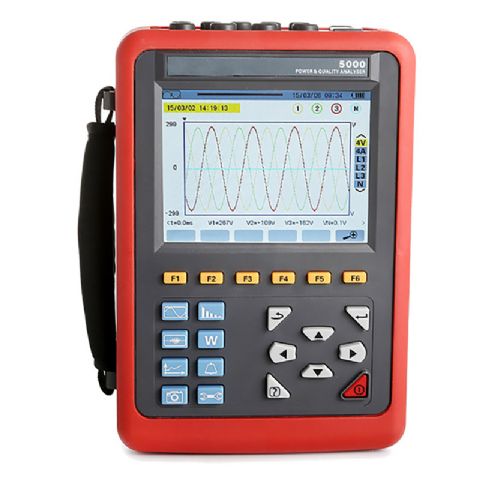

Double insulationInsulation anti vibration jacket.Digital Power Quality Analyzer 3 PhaseDigital Power Quality Analyzer 3 PhaseDigital Power Quality Analyzer 3 Phaseharmonic
