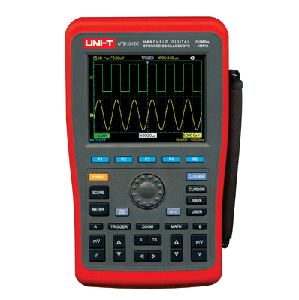

| Product Name: China Handheld Digital Storeage Oscilloscope |
| Product Numbers: UTD1062 |
| Product Specifications: Max.Display 5999 |
| Product Remark: Handheld Digital Storeage Oscilloscope |
| Product Class:Measuring and Testing Instruments > Electronic test Instruments > Oscilloscope |
|
 Product Details
SPECIFICATIONS
| Feature |
UTD1062C |
| Bandwidth |
60 MHz |
| Rise Time |
≤5.8 ns |
| Real-time Sampling Rate |
250MS/s |
| Equivalent Sampling Range |
25GS/s |
| Vertical Sensitivity |
5mV ~ 50V/div |
| Record Length (Max) |
2 x 512k |
| Scan Time Base |
5ns ~ 50s/div |
| Trigger Type |
Edge, Pulse, Video and Alternate |
| Automatic Waveform Measurements |
27 |
| Frequency Counter |
6 digits frequency counter |
| Ports |
USB Host |
| Mathematics |
Add, Subtract, Multiply, Divide, FFT |
| Interface |
Colour and Mono display selectable |
| Power |
The provided battery or out-sourced adaptor |
| Life of Battery |
3 hours |
| Other Features |
Multimeter,special LCD copy feature |
| Multimeter |
| Resistance |
600Ω / 6MΩ / 60MΩ : ± (1.5% + 5 digits)
6kΩ / 60kΩ / 600kΩ : ± (1.2% + 5 digits)
|
| DC Voltage |
600mV, 6V, 60V, 600V, 1000V: ± (1% + 5 digits) |
AC Voltage
(45Hz ~ 400Hz) |
600mV, 6V, 60V, 600V, 700V:
± (1.2% + 5 digits), Frequency: <200Hz
± (1.5% + 5 digits), Frequency: ≥200Hz |
| DC Current |
6mA, 60mA, 600mA: ± (1.2% + 5 digits)
6A: ± (1.5% + 5 digits) |
AC Current
(45Hz ~ 400Hz) |
6mA, 60mA, 600mA: ± (2% + 5 digits)
6A: ± (2.5% + 5 digits) |
| Capacitance |
6nF, 6mF: ± (5% + 10 digits)
60nF, 600nF, 6μF, 60μF, 600μF: ± (1.5% + 5 digits) |
| Continuity Buzzer |
YES |
| Diode |
YES |
| Trend Diagram |
YES |
| Testing Mode |
Manual / Auto ranging |
| Max.Display |
5999 |
GENERAL CHARACTERISTICS
| Power |
100 - 240V 50/60Hz 1.5A |
| LCD Size |
Diagonal 145mm (5.7 inches) |
| Product Color |
Red and Grey |
| Product Net Weight |
1.8kg |
| Product Size |
268mm x 168mm x 60mm |
| Accessories |
Probe x 2 (1x, 10x switchable),
Current Voltage Convertor x 2(UT-M03, UT-M04)
Power Cord, DC Adaptor and English Manual, Test Lead |
| Standard Individual Packing |
Tool Box and Gift Box |
| Standard Quantity Per Carton |
4 pcs |
| Standard Carton Measurement |
475 x 460 x 380mm (0.10 CBM Per Export Carton) |
| Standard Carton Gross Weight |
Around 23.2kg |
Digital Storage Oscilloscope (DSO)is often regarded as a necessary measuring tool that is designed to analyze complex signals or debug electronic devices. We call it DSO as the signals are sampled and then stored into memory, which makes it easier to examine them and their relationships
|
|
