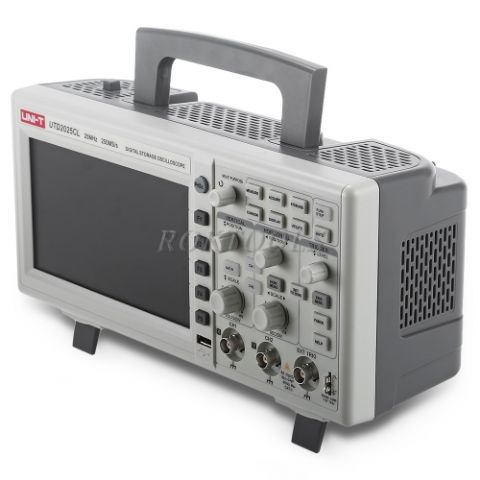

Bench Top Digital Storage Oscilloscope 25MHz 2 Channel
The products is 2 channel high quality oscilloscope with low cost. It made it possible to track two different signals simutanuously and compare overall differences in the waveform display. All data will be shown on the 7 inch TFT screen with sample rate of 250ms/s.
There are two color for this instruments, red and white. Both are brand new.
The instruments live up to its name, Allowing the data to be stored on the unit and the measurements can be transmited to PC vis a USB
The Oscillosope features rise time of less than 14ns, waveform acquisition rate of ≥2000wfms/s and includes multiple trigger modes (Edge, Pulse, Video and Alternate). and More important, the instruments is low pricing affordable.
This product is EN 61010-1 and CAT II 300V compliant.
Features:
Multiple trigger modes: Edge, Pulse, Video and Alternate
Interfaces: USB OTG, PASS/FAIL
Stroage modes: setup, wave and bitmap
Specification:
Channels: 2
Bandwidth: 25MHz
Sample Rate: 250Ms/s
Rise Time: 14ns
Memory Depth: 25kpts
Waveform Acquisition Rate: 2000wfms/s
Vertical Sensitivity: 1mV/div~20V/div
Timebase Range: 10ns/div~50s/div
Storage: Setup,Wave,Bitmap
Trigger Modes: Edge, Pluse, Video, Alternate
Interface: USB OTG,Pass/Fail
Power: 100-240VAC, 40-440Hz
Product Net Weight: 2.2 Kg
Product Size: 306mm * 147mm * 122mm
Display: 7 Inches 64K Color TFT LCD, 400×240
Product Color: White and Gray
Package Size: 39.5 * 24 * 21cm / 15.5 * 9.5 * 8.2in
Package Weight: 3464g / 7.6lb
Package List:
1 * UNI-T UTD2025CL Digital Storage Oscilloscope
2 * Test Probes(1×,10× switchable)
1 * AU Power Cable
1 * USB Cable
1 * PC Software CD
1 * English Manual
