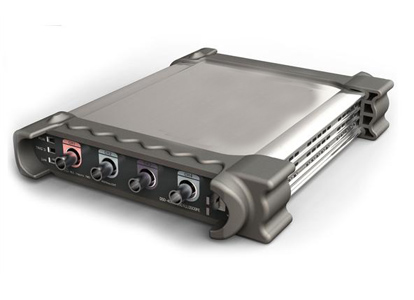

60MHz bandwidth; 2 or 4 channels oscilloscope;
    Models with many extra functions like arb. waveform generator, logic analyzer to select;
    USB 2.0 interface, LAN optional

    8--36V wide range of input voltage, suitable for vehicle power test.
    USB 2.0 interface, LAN optional.
    More than 20 kinds of automatic measurement function, PASS/FAIL Check function, is suitable for engineering application.
    Excellent industrial design,similar interface with bench oscilloscope. Easy to use.
    Software support: Windows NT, Windows 2000, Windows XO, VISTA, Windows 7.
    Supply DEMO code(VC, VB, LABIEW) and technical support.



Model	OSCI-3062AL	OSCI-3062L	OSCI-3062A	OSCI-3064A	OSCI-3064
Analog Channels	2	2	2	4	4
Arb. Waveform Generator	Yes	No	Yes	Yes	No
Logic Analyzer	Yes	Yes	No	No	No





Model	OSCI-3062AL	OSCI-3062L	OSCI-3062A	OSCI-3064A	OSCI-3064
VERTICAL
Analog Channels	2	2	2	4	4
Bandwidth	60MHz	60MHz	60MHz	60MHz	60MHz
Rise Time	5.8ns	5.8ns	5.8ns	5.8ns	5.8ns
Input Impedance	Resistance: 1MΩ; Capacitance: 25 pF
Input Sensitivity	10mV/div to 5V/div
Input Coupling	AC/DC/GND
Vertical Resolution	8 bits
Memory Depth	10K-16M/CH
Maximum Input	400V (DC+AC Peak)
HORIZONTAL
Real-Time Sampling Rate	200MS/s	200MS/s	200MS/s	200MS/s	200MS/s
Time Base Range	5ns/div to 1000s/div(1-2-5 sequences)
Time Base Precision	±50ppm
TRIGGER
Source	CH1, CH2,EXT,D0-D15		CH1, CH2,EXT	CH1, CH2,CH3,CH4,EXT
Mode	Edge,Pulse,Video,Alternative
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Waveform Signal Process	+,- , x,÷, FFT, Invert
Voltage Range	10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe; 1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe; 100V to 50000V/div @ x 10000 probe;  200mV to 100V/div @ 20:1
Current Range	CC65(20A),CC65(60A),CC650,CC1100
FFT	Rectangular, Hanning, Hamming, Blackman Window
Math	Adition, subtraction, multiplication, division
Logic Analyzer
High input impendence	200K(C=10p)		--	--	--
Input Voltage range	-60V~60V		--	--	--
Logic threshold range	-6~6V		--	--	--
Max Sample Rate	100MHz		--	--	--
Bandwidth	10MHz		--	--	--
Compatible input	TTL, LVTTL, CMOS,  LVCMOS,ECL, PECL, EIA		--	--	--
Storage depth	10K-16M/CH		--	--	--
Arbitrary Waveform Generator Mode
Waveform Frequency	DC~25MHz	--	DC~25MHz		--
DAC	2K~200MHz adjustable	--	2K~200MHz adjustable		--
Frequency Resolution	0.10%	--	0.10%		--
Channel	1CH	--	1CH waveform output		--
Waveform Depth	4KSa	--	4KSa		--
Vertical Resolution	12 bit	--	12 bit		--
Frequency Stability	<30ppm	--	<30ppm		--
Wave Amplitude	±3.5V Max.	--	±3.5V Max.		--
Output Impedance	50 Ω	--	50 Ω		--
Output Current	50mA	--	50mA Ipeak=50mA		--
System BW	25M	--	25M		--
Harmonic Distortion	-50dBc(1KHz), -40dBc(10KHz)	--	-50dBc(1KHz),  -40dBc(10KHz)		--
INTERFACE	USB  2.0 (Lan Optional)
POWER SOURCE	8--36V Wide range of input voltage, suitable
Volume	255 x 190 x 45 (mm)
Weight	1Kg
