| Product Name: WiFi 70MHz 2 Channels 250MSa/s Storage Oscilloscope |
| Product Numbers: IDSO1070A |
| Product Specifications: 70MHz |
| Product Unit: Sample, VPP, Vavg |
| Product Remark: Built-in Li-ion |
| Product Class:Measuring and Testing Instruments > Electronic test Instruments > Oscilloscope |
|

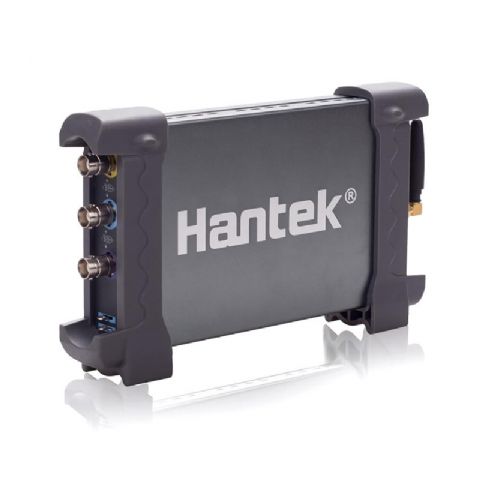

 Product Details WiFi 70MHz 2 Channels 250MSa/s Storage Oscilloscope
Features:
1. Newly design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also strong enough to hold the instruments, heat-resistance and strong wearability. The commmunication protocol can be easily found. Insead of WiFI. customers can also use USB to connect.
2. USB2.0 interface, USB power source required, easy to connect
3. Built-inLi-ion rechargeable battery include.
4. DVM readouts.
5. 20 measurement functions, PASS/FAIL Check, be suitable for technical application.
6. Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
7. Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
8. FFT.
9. System requirements: iOS, Android 4.0, Windows XP or higher, Tablet or PC.
Specification:
| Model |
IDSO1070A |
| Bandwidth |
70MHz |
| Channels |
2 |
| real-time sampling rate |
250MSa/s (Single), 125MSa/s (Double) |
| Sampling Mode |
Sample, VPP, Vavg |
| Average Sampling |
Average waveform, Time: 4, 8, 16, 32, 64, 128 |
| Memory Depth |
6K |
| Rise Time |
≤5ns |
| Timebase Accuracy |
±50ppm |
| Timebase range |
5ns/div-500s/div |
| Input Coupling |
DC, AC, GND |
| Input Impedance |
1MΩ 25pF |
| Attenuation |
1×, 10×, 100×, 1000× |
| Max. Input VoltageS |
35Vpk (DC+peak) |
| Waveform Interpolation |
Step, Linear, Sin(x)/x |
| Input Sensitivity |
10mV/div~5V/div |
| Vertical resolution |
8Bit |
| Vertical adjustable |
10mV ~ 5V/div @ x1 probe; 100mV ~ 50V/div @ x10 probe; |
| 1V ~ 500V/div @ x100 probe; 10V ~ 5KV/div @ x1000 probe |
| Range |
±4division |
| Low Frequency Response |
≤10Hz (at input BNC) |
| DC Gain Accuracy |
±3% |
| Bandwidth Limitation |
20MHz |
| Trigger Mode |
Auto, Normal and Single |
| Trigger Type |
Rising edge, falling edge |
| Trigger Accuracy |
±4division |
| Trigger Range |
±4V |
| Trigger Sensitivity |
0.02 |
| Trigger Source |
CH1, CH2, EXT |
| Waveform Calculation |
+,-,x,÷,FFT,Invert |
| Temperature |
Operation: 0℃-40℃; Non-operation: -20℃-60℃ |
| Humidity |
<35℃, relative humidity≤90%; 35℃-40℃, relative humidity≤60% |
| Cursor Measurement |
Cross, Trace, Horizontal, Vertical |
| Auto Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Size |
190mm x 100mm x 35mm |
| Net weight |
0.7KG |
Package included:
1 x Hantek IDS1070A WIFI USB Storage Oscilloscope
1 x Test Probe
1 x USB Cable
1 x Power Adapter
1 x CD
1 x English User Manual
1 x Gift Box
|
