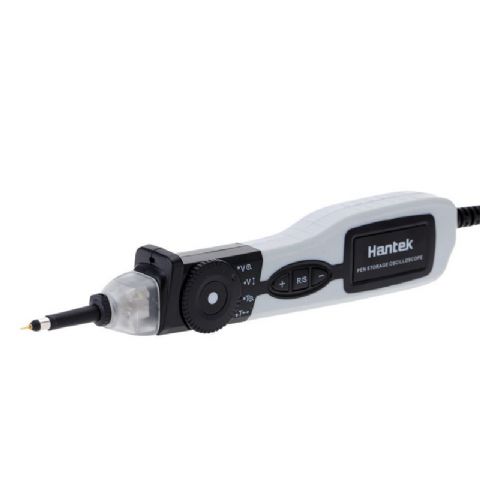

Pen Type Oscilloscope

Product Description

1. Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
2. USB 2.0 interface plug and play, and no need extra power supply.
3. Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
4. Good mechanical design with small size which is easy for carrying. The outer case is made by Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
5. 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth.
6. The waveform data could be output to EXCEL,BMP,JPG.
7. Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
8. FFT spectrum analyzer.
9. One computer could connect with multiple oscilloscopes, expand the channel number easily.
10. Provide secondary development library DLL; Provide LabviewVBVCQT developing examples.

Specifications:

• Vertical
• Channel: 1
• Bandwidth: 20MHz
• Input Impedence: 1MΩ
• Input Sensitivity: 20mV/div to 50V/div
• Input Coupling: DC/AC/GND
• Vertical Accuracy: ±3%
• Resolution: 8 bits
• Memory Depth:Maximum 1M/CH
• Max. Measurement Voltage: ±50V (Without any attenuation)
• Input Protection: 100V (DC+AC Peak)
• Horizontal
• Max. Sample Rate: 96MSa/s
• Time Base Range: 1ns/div to 5000s/div (Step by 1-2-5)
• Trigger
• Trigger Source: CH1
• Trigger Type: Edge Trigger
• Cursor and Measurement
• Voltage Measurement: Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,
• Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
• Cursors Measurement: Cross, Trace, Horizontal, Vertical
• Math: +,- , x,÷, FFT
• Voltage Range: 20mV to 20V/div @ x 1 probe
• Others
• FFT: Rectangular, Hanning, Hamming, Blackman
• Auto Set: Yes
• Interface: USB 2.0
• Power Supply: USB Power Supply
• Dimensions: 230 * 40 * 20mm / 9.05 * 1.57 * 0.8in
• Weight: 135g / 4.76oz
• Package Size: 30 * 12 * 3.5cm / 11.8 * 4.72 * 1.4in (L * W * H)
• Package Weight: 263g / 9.29oz

Package Information:

• 1 * PSO 2020 Pen Oscilloscope
• 1 * CD
