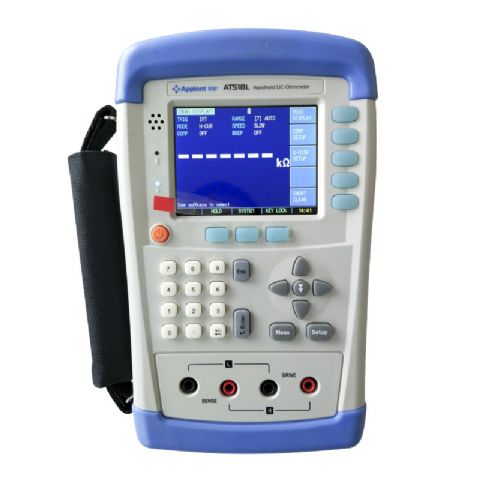

GD/NG Low Ohm Meter 10μΩ～200KΩ

Product Name: GD/NG Low Ohm Meter 10μΩ～200KΩ

Product Numbers: OHMM-AT518L

Product Specifications: 10μΩ～200KΩ

Product Class:Measuring and Testing Instruments > Electronic test Instruments > Ohm Meter Resistance Meter

Product Details

【DateTime:2018-04-19 Browse:】【Font: Big Mid Small】【Print】【Close】

GD/NG Low Ohm Meter 10μΩ～200KΩ

Feature

- Gorgeous dual-colure cast shell

- Battery and external power supply

- Automatic power off

- ABS/ PER/SEQ comparison criteria

- Comparator Function: GD/NG Show

- 3.5 inches, Truecolor 16M, TFT

- LCD Display

- Auto Zero- Adjust for each range

- Four terminal resistance measurement.

- Mini-USB interface

- SCPI compatible command sets

- Keypad lock function

- Switch both in English and Chinese.

- Background-lightness adjustment function

- Automatic shutdown set

- Size: 210.76mm (Length)*130.23mm (Width)*37.88mm (Heigth)

- Weight: 500g

- Battery: 8.4V, Li, 2200mAh, chargeable

- Max power: ≤5W

- Battery capacity: Over 8 hours’ continuous use

Application

- All kinds of low, medium, high resistor- Switch contact resistance

- Enamel-insulated wire resistance

- Connector Contact

- Relay/switch connector contacts

- Transformer, Inducer, Motor, Deflection coil winding resistance

- Welding Spot

- Wire resistance

- Metal riveting resistance of vehicle, vessels, airplane

- Pure resistance

- The resistance of motor and transformer

- Printed board line and hole resistance

- Low resistance character of Electromechanical Components

Comparison with AT518

Model	AT518	AT518L
Parameter	DC resistance	DC resistance
Accuracy	0.05%	0.1%
Measurement Range	10μΩ - 20MΩ	10μΩ to 200kΩ
Measurement Current	I-Max: <1A Current mode: high current, low current	I-Max: <1A Current mode: high current
Range	Auto, manual, nominal with 10 ranges	Auto, manual, nominal with 7 ranges
Speed	30 times per second, 15 times per second, 3 times per second	3 times per second
Result Display	ABS, PER, SEQ compare way	ABS, PER, SEQ compare way
Max Reading	20000 digits	20000 digits
Adjustment	Short circuit zero adjust for each range	Short circuit zero adjust for each range
Comparator	Built-in sorting record, GD/NG sorting result display	Built-in sorting record, GD/NG sorting result display
Trigger	Internal, manual and remote	Manual and internal
Test Lead	4 terminal shielding (2 check terminal and 2 driving terminal) and external shielding ground section
Temperature Compensation	Accuracy: 0.02°C Measurement Range: 0 to 80°C	None
Interface	Built-in mini USB interface
