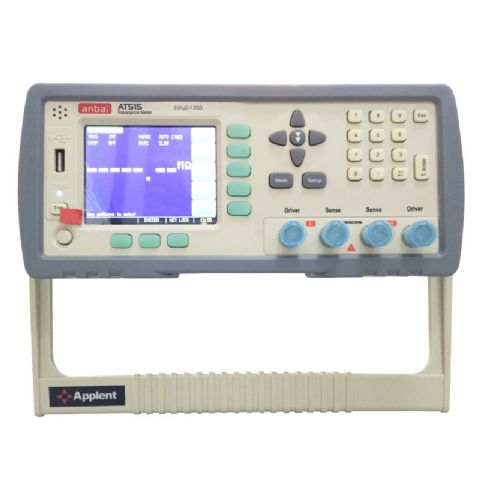

Micro Ohm Meter Resistance Meter 0.1μΩ - 110MΩ 110MΩ-1GΩ
Application
- Suitable for all kinds of high, middle and low resistor
- Contact resistance of the switches
- Contact resistance of all kinds of connector
- Resistance of motor and transformer
- windings- - Enamel-insulated wire resistance.
- relay/switch connector contacts
- PCB patterns
- chip inductor DC resistance
- Wire Resistance
Specification:
|
Parameter
|
DC resistance
|
|
Accuracy
|
0.01%
|
|
Measurement Range
|
0.1μΩ ~ 110MΩ, 110MΩ-1GΩ
|
|
Signal Source
|
Current range: 1μA~1A
|
|
Range
|
Automatic and manual with 11 ranges
|
|
Speed
|
167 times/second, 30 times/second, 10 times/second, 2 times/second
|
|
Result Display
|
Show, ΔABS,Δ% and sorting result
|
|
Max reading
|
1,200,000
|
|
Correction
|
Open & short reset
|
|
Comparator
|
30 groups record, NG-LO, GD-IN, NG-HI display and output,
adjustable beep and volum
|
|
Trigger
|
Internal, manual, external and remote
|
|
Configuration Interface
|
RS232C, Handler interface (PLC interface)
|
|
Test terminal
|
4 terminal shielding ( 2 check terminal and 2 driving terminal)
and external shielding ground section
|
|
Others
|
nLCD display, switchable in chinese and english menu
|
|
GENERAL FEATURES
|
|
Power Supply
|
Voltage: 198V AC-240V AC/110V Frequency: 50/60Hz Power: Max 15VA
|
|
Dimension & Weight
|
External size: 264mm (Width)x107mm (Height)x350mm (Depth)
Inside size: 216mm (Width)x88mm (Height)x323mm (Depth)
4kg
|
|
ORDERING INFORMATION
|
|
Accessories
|
ATL501: Kelvin clip
ATL108: 232 communication cable
|
|
Optional Accessories
|
ATL620: meter resistance 4-terminal test clip
|
Accessories:
ATL501: Kelvin clip
ATL108: 232 communication cable
