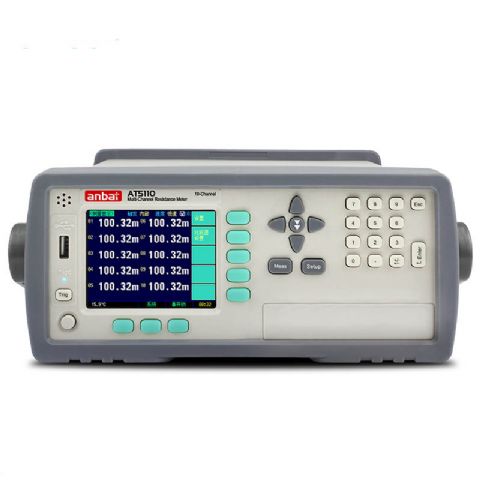

Multi Channels Micro Ohm Meter Internal and Remote Trigger
Feature:
-10 channels resistance scan measurement
-True-color TFT-LCD display, Can set resistance high/low limit independently
-Temperature compensation
-Keyboard lock function
-RS232 and handler interface
-DC resistance
-High Accuracy
-Wide Range: 1-30K
Application:
-Multiple winding transformer DC resistance measurement
-Coil DC resistance measurement
-Motors Multiple winding resistance measurement
Specification:
| Channel |
10 channels(Scanning test) |
| Parameter |
DC resistance |
| Accuracy |
0.05% |
| Measurement Range |
1-30K |
| Signal Source |
Max current:<1A |
| Range |
Automatic, manual |
| Speed |
Fast and low can be adjustable |
| Result Display |
10 channels show |
| Max Reading |
30,000 |
| Adjustment |
Short circuit zero reset within full range |
| Comparator |
Independently set 10 channels |
| Trigger |
Internal and remote |
| Interface |
RS-232C interface (SCPI instruction set),HANDLER interface(PLC interface) |
| Temperature |
Accuracy: 0.2C, temperature range: 0-80C |
| Method |
Four-terminal shield for each channel(including 2 detection element and 2 driving element) |
| Other |
True-color TFT-LCD display, Can set resistance bound Temperature compensation Keyboard lock |
| Power supply |
voltage:198VAC-250VAC frequency:50Hz power:max 15VA |
| Size Weight |
Outer size(mm):264 (width)x107(height)x350 (depth) Inner size:216(width)x88(height)x323(depth) Weight: 4kg |
|
Accessory
|
ATL503 Kalvin clip 10 teams, ATL108 232C interface |
