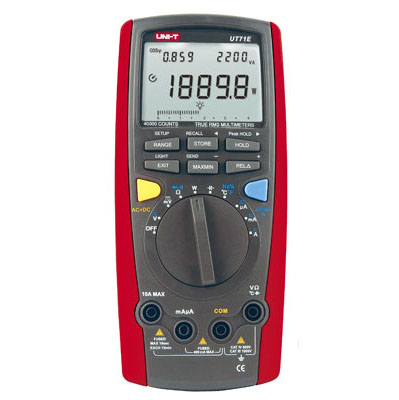

Intelligent Digital Multimeters
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| DC Voltage |
400mV/4V/40V/400V/1000V |
±(0.025%+5) |
| AC Voltage |
4V/40V/400V/1000V |
±(0.4%+30) |
| AC Bandwidth |
100KHz |
A |
| DC Current |
400µA/4000µA/40A/400mA/10A |
±(0.08%+8) |
| AC Current |
400µA/4000µA/40A/400mA/10A |
±(0.5%+15) |
| Resistance |
400W/4kW/40kW/400kW/4MW/40MW |
±(0.3%+8) |
| Capacitance |
40nF/400nF/4µF/40µF/400µF/4mF/40mF |
±(1%+20) |
| Temperature (°C) |
-40°C ~ 1000°C |
±(1%+30) |
| Temperature (°F) |
-40°F ~ 1832°F |
±(1.5%+50) |
| Frequency |
40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/400MHz |
±(0.01%+8) |
| Duty Cycle |
10%~90% |
±(1%+30) |
| 4~20mA Loop |
0~100% |
±(1%+50) |
| Power Measurement |
|
±(2%+5) |
| Special Functions |
|
|
| Fused 10A Range |
|
YES |
| Auto Ranging |
|
YES |
| Current Measurement Alarm |
|
YES |
| Function Set Up |
|
YES |
| Auto Ranging |
|
YES |
Votage & Current :
AC + DC Measurement |
|
YES |
| Data Logging |
|
100 |
| Data Recall |
|
YES |
| Diode |
|
YES |
| Continuity Buzzer |
|
YES |
| True RMS |
|
YES |
| Peak Hold |
|
YES |
| Max/Min Mode |
|
YES |
| Relative Mode |
|
YES |
| Data Hold |
|
YES |
| USB |
|
YES |
| Double Display Backlight |
|
YES |
| Full Icon Display |
|
YES |
| Sleep Mode |
|
YES |
| Low Battery Display |
|
YES |
|
Input Impedance for
DC Voltage Measurement
|
DC 200mV : Around 2.5GW
All Other Ranges : 10MW
|
YES |
| Max. Display |
40000 |
YES |
| Analogue Bar Graph |
|
YES |
GENERAL CHARACTERISTICS
| Power |
9V Battery (6F22) |
| LCD Size |
73 x 50 mm |
| Product Colour |
Red and Grey |
| Product Net Weight |
384g |
| Product Size |
200 x 93 x 40mm |
| Standard Accessories |
Test Lead, English Manual, Battery, Alligator Clip, USB Interface Cable,
Software, Point Contact Temperature, Probe, Carrying Bag, Test Clip, Power Adaptor |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
20 pcs |
| Standard Carton Measurement |
542 x 376 x 388mm
(0.079 CBM Per Standard Carton)
|
| Standard Carton Gross Weight |
18kg |
