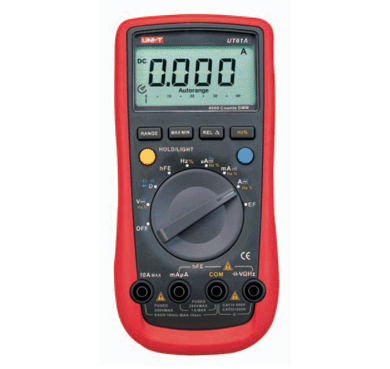

Digital Multimeters UT61A
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| DC Voltage |
400mV/4V/40V/400V/1000V
|
±(0.5%+1) |
| AC Voltage |
400mV/4V/40V/400V/750V |
±(1.0%+3) |
| AC Current |
400mA/4000mA/40mA/400mA/4A/10A |
±(1.2%+5) |
| DC Current |
400mA/4000mA/40mA/400mA/4A/10A |
±(1.0%+2) |
| Resistance |
400W/4kW/40kW/400kW/4MW/40MW |
±(1.0%+2) |
| Capacitance |
40nF/400nF/4mF/40mF400mF/4000mF |
±(3.0%+5) |
| Frequency |
10Hz-10MHz |
±(0.1%+4) |
| Frequency Response |
0 |
45~400Hz |
| Duty Cycle |
0.1%~99.9% |
YES |
| Special Functions |
|
|
| Auto/Manual Ranging |
|
YES |
| Diode |
|
YES |
| EF Function |
|
YES |
| Audion |
|
YES |
| Continuity Buzzer |
|
YES |
| Data Hold |
|
YES |
| Max/Min Mode |
|
YES |
| Display Backlight |
|
YES |
| REL |
|
YES |
| Analogue Bar Graph |
41 |
YES |
| Input Protection |
|
YES |
| Input Impedance for DC Voltage Measurement |
Around 10MW |
YES |
| Low Battery Display |
≤7.5V |
YES |
| Max Display |
4000 |
YES |
GENERAL CHARACTERISTICS
| Power |
9V Battery (6F22) |
| LCD Size |
65 x 43mm |
| Product Colour |
Red and Grey |
| Product Net Weight |
370g |
| Product Size |
180 x 87 x 47mm |
| Standard Accessories |
Battery, Test Lead, English Manual, Multi-Purpose Socket |
| Optional Accessories* |
USB Interface Cable |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
20pcs |
| Standard Carton Measurement |
465 x 335 x 345mm (0.054 CBM Per Standard Carton) |
| Standard Carton Gross Weight |
12kg |
