| Product Name: Digital Multimeters UT58E |
| Product Numbers: UT58E |
| Product Specifications: Max Display 19999 |
| Product Unit: Sleep Mode |
| Product Remark: China manufacturer, Exporter |
| Product Class:Measuring and Testing Instruments > Electronic test Instruments > Multimeters |
|

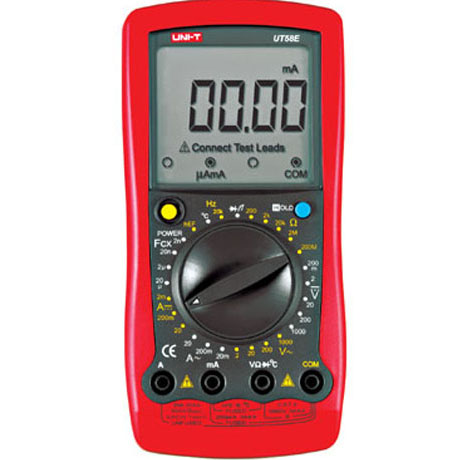

 Product Details Digital Multimeters Model UT58E is 4 1/2 digits with ex-large LCD, steady operations, fashionable structure and highly reliable hand-held measuring instrument. The Meter uses large scale of integrated circuit with double integrated A/D converter as its core and has full range overload protection. The Meter has 28 different measuring functions. It has not only can measure AC/DC Voltage, AC/DC Current, Resistance, Temperature, Capacitance, Frequency, Transistor, Diode and Continuity, but also have Data Hold, Full Icon Display, Overload Protection and Sleep Mode features.
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| DC Voltage |
200mV/2V/20V/200V/1000V |
±(0.05%+3) |
| AC Voltage |
2V/20V/200V/1000V |
±(0.5%+10) |
| DC Current |
2mA/200mA/20A |
±(0.5%+5) |
| AC Current |
20mA/200mA/20A |
±(0.8%+10) |
| Resistance |
200W/2kW/20kW/2MW/200MW |
±(0.5%+10) |
| Capacitance |
2nF/20nF/2mF/20mF |
±(3%+40) |
| Temperature(°C) |
-40°C ~ 1000°C |
±(1%+30) |
| Frequency |
20kHz |
±(1.5%+5) |
| Special Functions |
|
|
| Diode |
|
YES |
| Continuity Buzzer |
|
YES |
| Transistor |
|
YES |
| Data Hold |
|
YES |
| Full Icon Display |
|
YES |
| Sleep Mode |
|
YES |
| Low Battery Display |
|
YES |
Input Impedance for DC
Voltage Measurement |
Around 10MW |
YES |
| Max Display |
19999 |
YES |
GENERAL CHARACTERISTICS
| Power |
9V Battery (6F22) |
| LCD Size |
60 x 54mm |
| Product Colour |
Grey Holster - Red |
| Product Net Weight |
350g (including holster) |
| Product Size |
179 x 88 x 39mm |
| Standard Accessories |
Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip, Multi-Purpose Socket, Holster |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
40pcs |
| Standard Carton Measurement |
598 x 418 x 340mm
(0.085 CBM Per Standard Carton) |
| Standard Carton Gross Weight |
27kg |
|
|
