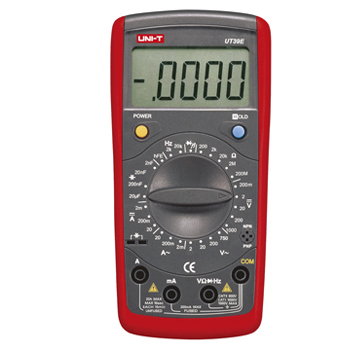

Digital Multimeter Model UT39E  is a 4 1/2 digits with steady operations, fashionable structure and highly reliable hand-held measuring instrument. The Meter uses large scale of integrated circuit with double integrated A/D converter as its core and has full range overload protection. The Meter not only can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Transistor, Frequency, Diodes and Continuity, but also has Data Hold and Sleep Mode features.

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
DC Voltage	200mV/2V/20V/200V/1000V	±(0.05%+3)
AC Voltage	2V/20V/200V/750V	±(0.5%+10)
DC Current	2mA/200mA/20A	±(0.5%+5)
AC Current	2mA/200mA/20A	±(0.8%+5)
Resistance	200W/2kW/20kW/2MW/20MW	±(0.3%+1)
Capacitance	2nF/20nF/200nF/20µF	±(4%+3)
Frequency	2kHz/20kHz	±(1.5%+5)
Special Functions
Diode		YES
Continuity Buzzer		YES
Transistor		YES
Data Hold		YES
Sleep Mode		YES
Low Battery Display		YES
Input Impedance for DC Voltage Measurement	Around 10MW	YES
Max. Display		19999

GENERAL CHARACTERISTICS

Power	9V Battery (6F22)
LCD Size	61 x 32mm
Product Colour	Red and Grey
Product Net Weight	310g (Including Holster)
Product Size	172 x 83 x 38mm
Standard Accessories	Test Lead, Battery, English Manual, Holster
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	40pcs
Standard Carton Measurement	598 x 418 x 340mm (0.082CBM Per Standard Carton)
Standard Carton Gross Weight	22kg
