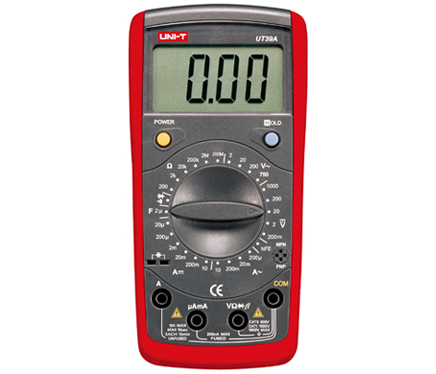

Digital Multimeters Model UT39A, UT39B and UT39C are 3 1/2 digits with steady operations, fashionable structure and highlyreliable hand-held measuring instrument. The Meter uses large scale of integrated circuit with double integratedA/D converter as its core and has full range overload protection. The Meter not only can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance,Temperature, Transistor, Frequency, Diodes and Continuity, but also has Data Hold and Sleep Mode features.The Meter comes with a holster which can provide sufficient and anti-shaking.
SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| DC Voltage |
200mV/2V/20V/200V/1000V |
±(0.5%+1) |
| AC Voltage |
2V/20V/200V/750V |
±(0.8%+3) |
| DC Current |
20µA/200µA/2mA/20mA/200mA/10A |
±(0.8%+1) |
| AC Current |
200µA/20mA/200mA/10A |
±(1%+3) |
| Resistance |
200W/2kW/20kW/200kW/2MW/200MW |
±(0.8%+1) |
| Capacitance |
2µF |
±(4%+3) |
| Special Functions |
|
|
| Diode |
|
YES |
| Continuity Buzzer |
|
YES |
| Transistor |
|
YES |
| Data Hold |
|
YES |
| Sleep Mode |
|
YES |
| Low Battery Display |
|
YES |
|
Input Impedance for
DC Voltage Measurement
|
Around 10MW
|
YES |
| Max. Display |
1999 |
YES |
GENERAL CHARACTERISTICS
| Power |
9V Battery (6F22) |
| LCD Size |
61 x 32mm |
| Product Colour |
Grey Holster-Red |
| Product Net Weight |
310g (Including Holster) |
| Product Size |
172 x 83 x 38mm |
| Standard Accessories |
Test Lead, Battery, English Manual, Holster |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
40pcs |
| Standard Carton Measurement |
598 x 418 x 340mm
(0.085CBM Per Standard Carton)
|
| Standard Carton Gross Weight |
21kg |
