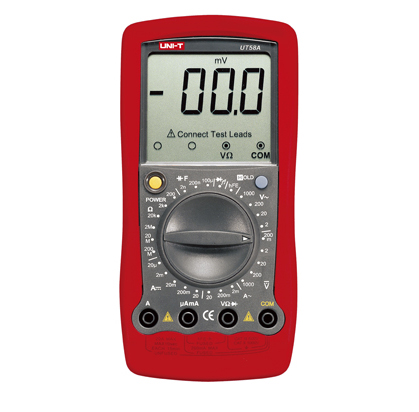

Digital Multimeters Model UT58A, UT58B and UT58C(hereafter referred to as “the Meter”) are 3 1/2 digits with ex-large LCD, steady operations, fashionable structure
and highly reliable hand-held measuring instrument. The Meter uses large scale of integrated circuit and has full range overload protection. The Meter not only can measure AC/DC Voltage, AC/DC Current, Resistance,Capacitance, Temperature, Frequency, Transistor, Diode and Continuity, but also have Data Hold, Full Icon Display, Overload Protection and Sleep Mode features
SPECIFICATIONS
|
Basic Functions
|
Range |
Best Accuracy |
| DC Voltage |
200mV/2V/20V/200V/1000V
|
±(0.5%+1)
|
| AC Voltage |
2V/20V/200V/750V
|
±(0.8%+3)
|
| DC Current |
20mA/2mA/20mA/200mA/20A
|
±(0.8%+1)
|
| AC Current |
2mA/200mA/20A
|
±(1%+3)
|
| Resistance |
200W/2kW/20kW/2MW/20MW/200WM
|
±(0.8%+1)
|
| Capacitance |
2nF/200nF/100mF
|
±(4%+3)
|
| Special Functions |
|
|
| Diode |
|
YES
|
| Continuity Buzzer |
|
|
| Transistor |
|
YES
|
| Data Hold |
|
YES
|
| Full Icon Display |
|
YES
|
| Sleep Mode |
|
YES
|
| Low Battery Display |
|
YES
|
|
Input Impedance for DC
Voltage Measurement
|
Around 10MW |
YES
|
| Max Display |
1999 |
YES
|
GENERAL CHARACTERISTICS
| Power |
9V Battery (6F22) |
| LCD Size |
60 x 54mm |
| Product Colour |
Grey Holster - Red |
| Product Net Weight |
350g (including holster) |
| Product Size |
179 x 88 x 39mm |
| Standard Accessories |
Test Lead, Battery, English Manual, Multi-Purpose Socket, Holster |
| Standard Packing |
Gift Box |
| Standard Quantity Per Carton |
40pcs |
| Standard Carton Measurement |
598 x 418 x 340mm
(0.085 CBM Per Standard Carton) |
| Standard Carton Gross Weight |
27kg |
