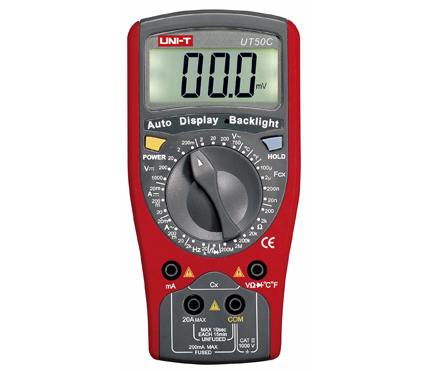

Digital Multimeters Model UT50A, UT50B and UT50C are 3 1/2 digits with steady operations, fashionable structure and highly reliable hand-held measuring instrument. The Meter uses large scale of integrated circuit with double integrated A/D converter as its core and has full range overload protection. The Meter not only can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Temperature, Frequency, Diodes and Continuity, but also has Data Hold, Full Icon Display and Sleep Mode features. The Meter adopted advanced “co-injection” technique in order to provide sufficient insulation and anti-shaking. In addition, the Automatic Display Backlight feature enables user to work in a dim condition.
SPECIFICATIONS
Basic Functions |
Range |
Best Accuracy |
DC Voltage |
200mV/2V/20V/200V/1000V |
±(0.5%+1) |
AC Voltage |
2V/20V/200V/750V |
±(0.8%+3) |
DC Current |
20mA/200mA/20A |
±(0.8%+1) |
AC Current |
20mA/200mA/20A |
±(1%+3) |
Resistance |
200W/2kW/20kW/200kW/2MW/200MW |
±(0.8%+1) |
Capacitance |
20nF/200nF/2mF/100mF |
±(4%+3) |
Frequency |
2kHz/20kHz |
±(1.5%+5) |
Special Functions |
|
|
Diode |
|
YES |
Continuity Buzzer |
|
YES |
Data Hold |
|
YES |
Display Backlight |
Auto Sensor |
YES |
Full Icon Display |
|
YES |
Sleep Mode |
|
YES |
Low Battery Display |
|
YES |
Input Impedance for DC
Voltage Measurement |
Around 10MW |
YES |
Max. Display |
1999 |
YES |
GENERAL CHARACTERISTICS
Power |
9V Battery (6F22) |
LCD Size |
59 x 25mm |
Product Colour |
Red and Grey |
Product Net Weight |
275g |
Product Size |
165 x 80 x 38.3mm |
Standard Accessories |
Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip |
Standard Individual Packing |
Gift Box |
Standard Quantity Per Carton |
40pcs |
Standard Carton Measurement |
598 x 418 x 340mm
(Around 0.085 CBM Per Standard Carton) |
Standard Carton Gross Weight |
21kg |
