Specifications

Range

Best Accuracy

Model

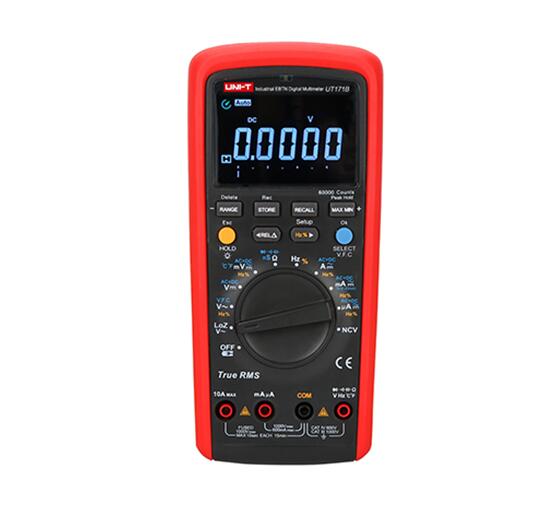

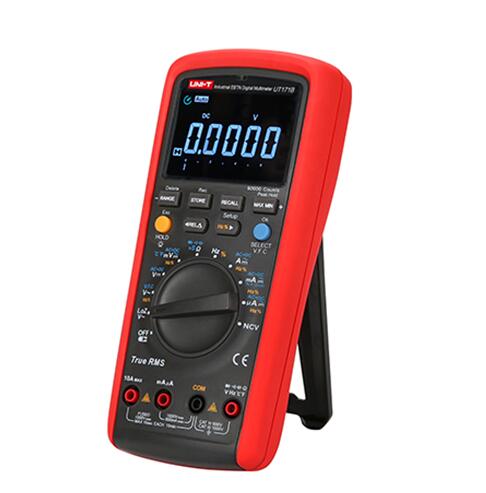

UT171B

DC Voltage (V)

600mV/6V/60V/600V/1000V

±(0.025%＋5)

AC Voltage (V)

600mV/6V/60V/600V/750V

±(0.4%＋40)

DC Current (A)

600uA/6000uA/60mA/600mA/6A/10A

±(0.15%＋2)

AC Current  (A)

600uA/6000uA/60mA/600mA/6A/10A

±(0.75%＋5)

Resistance (Ω)

600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ

±(0.05%＋2)

Admittance (nS)

60nS

±(1.0%＋10)

Capacitance(F)

6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF

±(2.5%+40)

Frequence (Hz)

10Hz~10MHz

±(0.01%+5)

Temperature (℃)

-40℃~1000℃

±(1.0%+30)

Temperature (℉)

-40℉~1832℉

±(1.5％+50)

Features

Display Count

60000

Auto/Manual Range

√

True RMS

√

Bandwidth (Hz)

100KHz

√

AC + DC

√

V.F.C

√

4~20mA Loop

0~100%

√

LoZ(ACV)

Around 3KΩ

√

Diode

Around 3.0V

√

Continuity Buzzer

√

Duty Cycle

1%~99%

√

NCV

√

Data Hold/MAX/MIN

√

Relative Mode

√

Peak Hold

√

Data Storage

9999

Data Comparsion Function

√

USB Interface

√

Display Type

EBTN

LCD Backlight

√

Analogue Bar Graph

√

Mis-plug Alarm

√

Low Battery Indication

√

Rechargeable Battery

√

Auto Power Off

Around 15 Minutes

√

Input Protection

√

Input Impedance for DCV

Around 1GΩ

√

General Characteristic

Power

7.4V  2000mAh  Li-ion Battery

LCD Size

70.6mm x 35.3 mm

Product Color

Red and Grey

Product Net Weight

384g

Product Size

206mm x 95mm x 55mm

Standard Accessories

Batteries, Test lead, Point Contact Temperature Probe, USB Interface Cable,

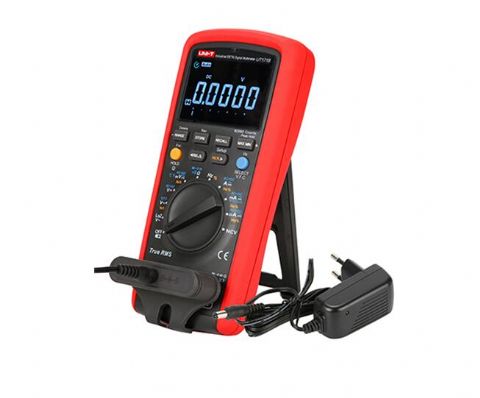

Power Adaptor(For UT171B),PC Software CD

Standard Individual Packing

Gift Box, Carrying Bag, English Manual

Optional Accessories*

Bluetooth Adaptor (UT-D07A) , NOT included
