Professional High End Digital Multimeter UT71C
Zoom Browse
Product Name: Professional High End Digital Multimeter UT71C
Product Numbers: UT71C
Product Specifications: 400mV/4V/40V/400V/1000V
Product Unit: Relative Mode
Product Remark: True RMS
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Multimeters
Product Details
【DateTime:2016-07-21 Browse:】【Font: Big Mid Small】【Print】【Close

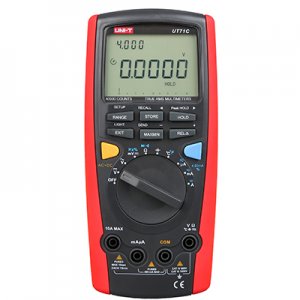

Professional High End Digital Multimeter UT71C
           The UT71C is high end multimeter with many functions, such as diode, bar graph.

Specification:

Specifications Range Best Accuracy
Model   UT71C
DC Voltage (V) 400mV/4V/40V/400V/1000V ±(0.025%+5)
AC Voltage (V) 4V/40V/400V/1000V ±(0.4%+30)
DC Current (A) 400μA/4000μA/40mA/400mA/10A ± (0.1%+15)
AC Current (A) 400μA/4000μA/40mA/400mA/10A ± (0.7%+15)
Resistance (Ω) 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ ±(0.3%+8)
Capacitance (F) 40nF/400nF/4μF/40μF/400μF/4mF/40mF ±(1%+20)
Frequency (Hz) 40Hz-400MHz  ±(0.01%+8)
Temperature (°C) -40 °C ~ 1000°C ±(1%+30)
Temperature (°F) -40°F~1832°F ±(1.5%+50)
Features
Display Count   39999
Auto Range
True RMS
Bandwidth (Hz) 100KHz
Duty Cycle 10% ~ 90% ±(1%+30)
Diode
Auto Power Off
Continuity Buzzer
Low Battery Indication
Data Hold
Relative Mode
MAX/MIN
Data Logging   100
USB Interface
Double Backlight
Analogue Bar Graph
Full Icon Display
Setup
Input Impedance for DCV DC 400mV: Around 2.5GΩ,All Other Range: 10MΩ
4 - 20mA Loop 0~100% ±(1%+50)
Fused 10 A
Current Measurement Alarm
Voltage & Current  AC+DC Measurement
General Characteristic
Power 9V Battery(6F22)
LCD Size 73mm X 50 mm
Product Color Red and Grey
Product Net Weight 384g
Product Size 200mm X 93mm X 40 mm
Standard Accessories Battery, Test Lead, Alligator Clip, Test Clip, USB Interface Cable,PC Software CDe,Carrying Bag, Point Contact Temperature Probe
Standard Individual Packing Gift Box, English Manual

ut71c-2

ut71c-3
