Features:

Advanced Modern Design

Multiple function for AC DC voltage, current, resistance, capacitance, inductance, frequency , temperture

Hold function

Maximum value

With backlight

Display polarity

Low battery indicator



Specifications	Range	Best Accuracy

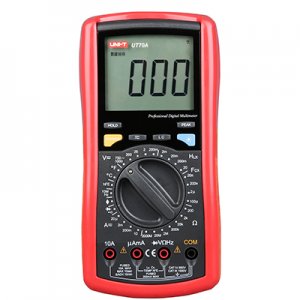

Model		UT70A
DC Voltage (V)	200mV/2V/20V/200V/1000V	±(0.5%+1)
AC Voltage(V)	200mV/2V/20V/200V/750V	±(0.8%+3)
DC Current (A)	20mA/2mA/200mA/10A	±(0.8%+1)
AC Current (A)	20mA/2mA/200mA/10A	±(1%+3)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200MΩ/2MΩ/20MΩ/200MΩ	±(0.8%+1)
Capacitance (F)	20nF/200nF/2μF/100μF	±(2.5%+5)
Inductance	2mH/20mH/200mH/20H	±(2%+10)
Frequency	2kHz～10MHz	±(0.1%+3)
Temperture(°C)	-40℃～1000℃	±(1%+3)
Temperture(°F)	-40℉～1832℉	±(1%+4)
Features
Fused 10A Range		√
Diode		√
Transistor		√
Continuity Buzzer		√
Relative Mode	TTL	√
Full Icon Display		√
Sleep Mode		√
Low Battery Display		√
Input Impedance for DC Voltage Measurement	10MΩ	√
Max/Min Mode
Peak Hold		√
Data Hold		√
Display Backlight		√
Auto Ranging		√
Max. Display		1999
General Characteristic
Power	9V Battery (6F22)
LCD Size	62mm×53mm
Product Color	Red and Grey
Product Net Weight	600g (including holster)
Product Size	195mm×90mm×40mm
Standard Accessories	Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip, Multi-Purpose Socket, Holster
Standard Packing	Gift Box, English Manual
