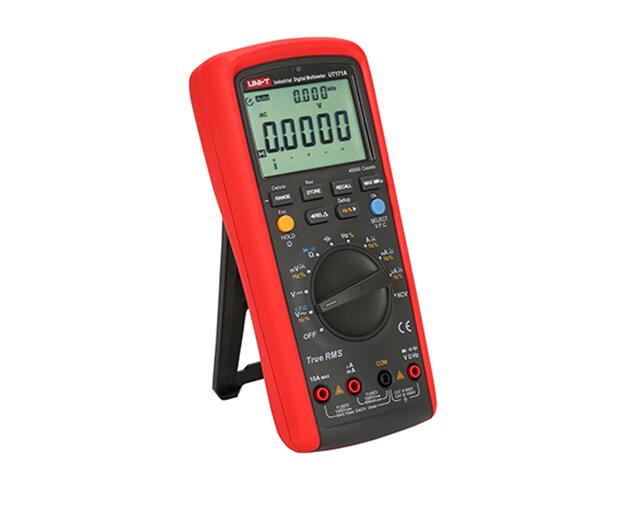

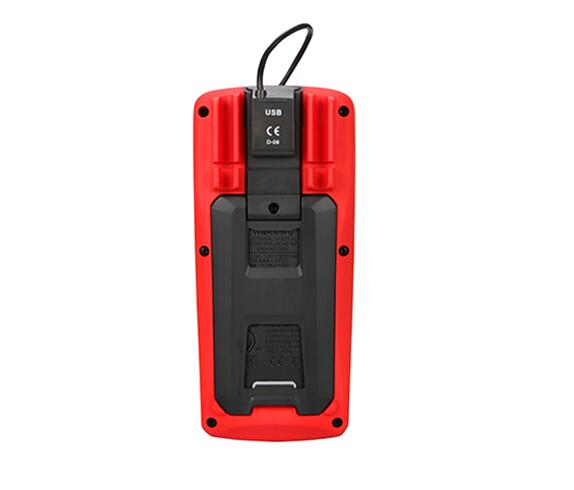

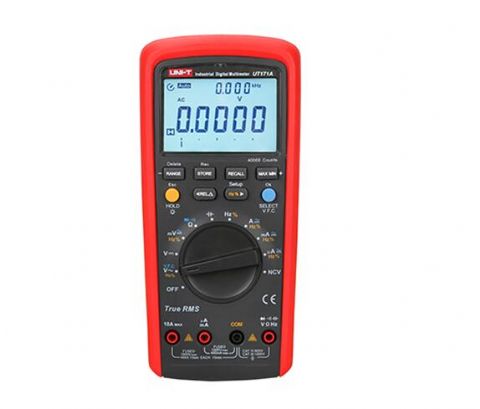

UT171A series digital multimeter is with high accuracy, high reliability, high security, auto range of features.
Accurate measurement of the voltage signal at 100KHz conditions broadband, square wave signal, conductivity nS and other signals;
Product chip set VFC start mode, the internal will go through a particular filter circuit filters out high-frequency interference signal, ensuring accurate measurement data! It can be applied occasions with VFC frequency voltage, full scale overload protection and unique design, making performance more remarkable generation of practical electrical measuring instruments.
It can be used to detect various types of universities, smelting, telecommunications, manufacturing, oil, defense, electricity, electrical, circuits, electrical equipment, maintenance and repair of the ideal tool.
main feature:
1, measurement speed (5th / S) is twice the speed of other multimeter;
2, the variable square wave signal output (frequency 0.5Hz ~ 4800Hz, low impedance);
3,40000 / 60000 Counts / True RMS;
4, AC LoZ voltage test;
5, AC / DC uA / mA / A current testing;
6, AC + DC measurement mode;
7, resistance, conductivity nS measurement;
8, VFC household / industrial frequency voltage test;
9, built-in lithium battery 7.4V / 1800mA, charging tips circuit;
10, temperature test -40 ℃ ~ 1000 ℃;
11, CAT III 1000V / CAT IV600V;
12, with electronic storage of records 1000/10000 strip;
13, support USB / Bluetooth transmission mode;
14, anti-mispluging alarm;
15, 20A can be used for high-current measurement;
16, Safety Certification: CE, cETLus.



Specifications	Range	Best Accuracy
Model		UT171A
DC Voltage (V)	400mV/4V/40V400V/1000V	±(0.025%＋5)
AC Voltage (V)	400mV/4V/40V400V/750V	±(0.4%＋40)
DC Current (A)	400uA/4000uA/40mA/400mA/4A/10A	±(0.15%＋2)
AC Current  (A)	400uA/4000uA/40mA/400mA/4A/10A	±(0.75%＋5)
Resistance (Ω)	400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ	±(0.05%＋2)
Capacitance(F)	4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF	±(2.5%+40)
Frequence (Hz)	10Hz~10MHz	±(0.01%+5)
Features
Display Count		40000
Auto/Manual Range		√
True RMS		√
Bandwidth (Hz)	100KHz	√
Diode	Around 3.0V	√
Continuity Buzzer		√
Duty Cycle	1%~99%	√
NCV		√
Data Hold/MAX/MIN		√
Relative Mode		√
Data Storage		999
USB Interface		√
Display Type		LCD
LCD Backlight		√
Analogue Bar Graph		√
Mis-plug Alarm		√
Low Battery Indication		√
Auto Power Off	Around 15 Minutes	√
Input Protection		√
Input Impedance for DCV	Around 1GΩ	√
General Characteristic
Power	AA 1.5V x 6
LCD Size	70.6mm x 49.5mm
Product Color	Red and Grey
Product Net Weight	384g
Product Size	206mm x 95mm x 55mm
Standard Accessories	Batteries, Test lead, Point Contact Temperature Probe, USB Interface Cable, Power Adaptor(For UT171B/C),PC Software CD
Standard Individual Packing	Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton	20 PCs
Standard Carton Measurement	530mm × 360mm × 285mm (0.055 CBM Per Standard Carton)
Standard Carton Gross Weight	22 Kg
Optional Accessories*	Bluetooth Adaptor (UT-D07)
