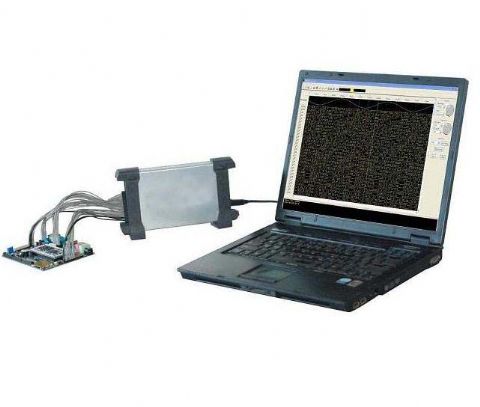

Combines the function of logic analyzer,bus analyzer, and logic probe etc. in one.Its suitable for various digital circuits development, testing, analysis and debug, is an able aider for electronics development & electronic measuring engineers, and teaching and research work at college.
Its 2Gbit memory depth (DDR2), 400MSa/s sampling rate, and 150MHz bandwidth can meet your various needs.



    •4032L combines the function of logic analyzer, bus analyzer, and logic probe etc. in one.
    •Its suitable for various digital circuits development, testing, analysis and debug, is an able aider for electronics
    •Development & electronic measuring engineers, and teaching and research work at college.
    •Its 2Gbit memory depth (DDR2), 400MSa/s sampling rate, and 150MHz bandwidth can meet your various needs.
    •The innovative trigger mode and new analysis measurement tool make your measurement simple and efficient.
    •It can set edge, level, bus, data width etc. Trigger mode, easy to use.
    •Its innovative data analysis function makes your analyze UART, SPI, and I2C etc. data more easy and relax.
    •The strong protocol secondary analytic capability is able to export files in CSV, TXT, DOC format, which facilitate
    •Secondary analysis with other tools.
    •Plug and play high speed USB 2.0 interface.
    •Excellent industrial design, similar interface to digital storage oscilloscope, easy to use.

Channel	32
Input Impedance	200K(C=10p)
Input Voltage Range	-6V~60V
Voltage Threshold Range	-6V~6V
Max. Sample Rate	400MHz
Max. Input Signal Bandwidth	150MHz
Min Time Resolution	2ns
Sample Depth	64M Sample
Memory Depth	2G bits
Compatible Input	TTL, LVTTL, CMOS, LVCOMS, ECL, PECL, EIA
Electrostatic Protected Area	15KV
Interface	USB Port
Voltage Range	4.5V~5.5V
Power	Max. 3.5W
Temperature Range	Operation: -10°C~60°C; Storage: -40°C~60°C
Operating System	WinXP/2000/Win7
Size&Weight	207(D) x 37(H) x 123(W) mm, about 390g
