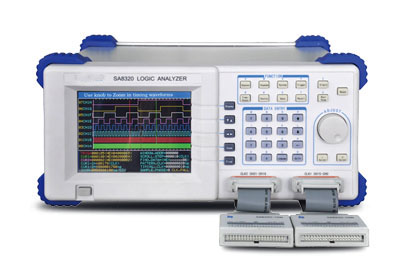

High Speed Logic Analyzer
A logic analyzer is an electronic instrument that captures and displays multiple signals from a digital system or digital circuit. A logic analyzer may convert the captured data into timing diagrams, protocol decodes, state machine traces, assembly language, or may correlate assembly with source-level software.
|
FEATURES
● Large scale integrated circuit, FPGA, SOPC, high speed and large memory
● Perfect function of start, trigger and delay to track and take the concerned data effectively
● 32 data sampling channels, 2 external clock channels
● A fast and effective debugging tool for hardware and software of MCU
● 5.7” color LCD display, the resolution 320×240 points
● Standard interface is USB Device and RS-232
SPECIFICATIONS
|
Main Specifications
|
LOAN-2032 Logic Analyzer
|
|
Input
|
Input Channel: 32 data sampling channels, 2 external clock channels
|
|
Threshold Voltage: 6 independent and adjustable threshold voltages
Range: -6 V ~ +6 V
Resolution: 0.1 V
|
|
Input Impedance: R ^ >100 kΩ, C ^ <8 pf
|
|
Sample/Memory
|
Sampling Rate
Timing Rate 1 Hz ~ 100 MHz
State Rate 1 Hz ~ 35 MHz
|
|
Sampling Phase: rise edge, falling edge
|
|
Memory Depth: 256 K bytes / channel
|
|
Trigger
|
Trigger Condition: 32 bits trigger level, 32 bits trigger comparand.
|
|
Event Count: 1 ~ 999
|
|
Memory Delay: 1~260000 sampling cycles
|
|
Cursor Control
|
Measurement Cursor, Trigger Cursor, Search Cursor
|
|
Code Generator
|
Code Type:
Channel 00 to 15 are counter with adding one; Channel 16 to 29 are shift pulse; Channel 30 to 31 are used for monitoring external clk1 and clk2
|
|
Code Rate:
Frequency: 1 Hz ~ 50 MHz (cycle 20 ns ~1s) Resolution: 10 ns
|
|
General Characteristics
|
|
Power: AC100 ~240 V, 45 ~ 65 Hz, < 30 VA
Working Environment: Temperature: 0 ~ 40 degree, Humidity: < 80％RH
Dimensions: 329×283×155 mm
Weight: Approx. 4.3 kg
|
|
Package:
3-core power cord 1
50 wires cables and connector 2
Input transferring boxes 2
Test hook 40
Test hook connecting line 40
Interface demo CD 1
