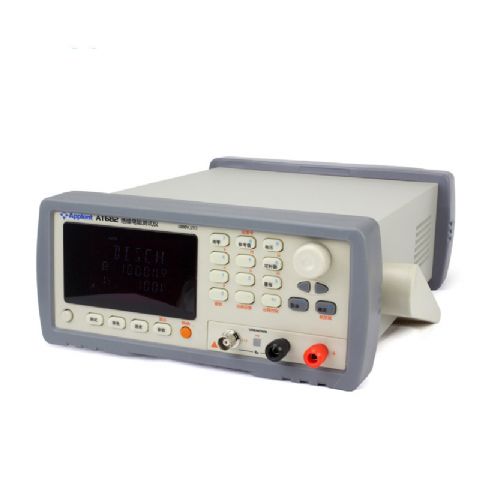

Programmable Voltage Insulation Resistance Tester 1V-1000VDC
Feature:
-3-lines VFD Display
-Correction: OPEN
-Comparator: 30 files, GD/NG Beeper
-Interface: RS232C and Handler
-Optional Interface: USB
-Adjustable voltage
-Wide Range Insulation resistance measurement
-Zero adjustment
-RS232C and handler interfaces
-Display can show results, current, resistance, peak value and sorting results
-Both auto and manual ranging
Application:
-Capacitors
-Relays
-Switches
-Connectors
-Materials
-Cables
-PC boards.
-Electronic components
-Electro-mechanical components
Specification:
| Parameters |
Leakage current and insulation resistance |
| Output Voltage |
1V-1000VDC |
| Accuracy |
<10G: 3% 10G: 5% 100G: 10% |
| Measurement Range |
10k-1T(104~1012) |
| Display Max |
9999 |
| Range |
Automatic and Manual |
| Speed |
55 times/second, 15 times/second, 3 times/second |
| Adjustment |
Open-circuit Zero-Adjust for each range |
| Result Display; |
Show, current, resistance, peak value, sorting results |
| Charging Timer |
999.9s |
| Comparator |
30 sets record, GD/NG Beep: GD, NG, OFF setting. |
| Interface |
RS-232C interface Handler interface |
| Power Supply |
Voltage:198VAC-240VAC Frequency:50Hz Power: Max 30VA |
| Dimension & Weight |
264(Width)x107(Height)x350(Depth)(mm) 5kg |
| Accessories |
ATL507: Test Clip ATL108: RS232 Interface Cable |
| Others |
VFD 4 color high-definition screen, keypad-lock , data hold |
