| Product Name: ROKTOOLS Programmable DC Electronic Load |
| Product Numbers: ELLO-AT8612 |
| Product Specifications: Current ≈30A, Resistance ≈40mΩ |
| Product Unit: NRM, TRN, SEQ, ATF, BAT and SHT |
| Product Remark: CC, CV, CP and CR load |
| Product Class:Measuring and Testing Instruments > Electronic test Instruments > Electronic Load |
|

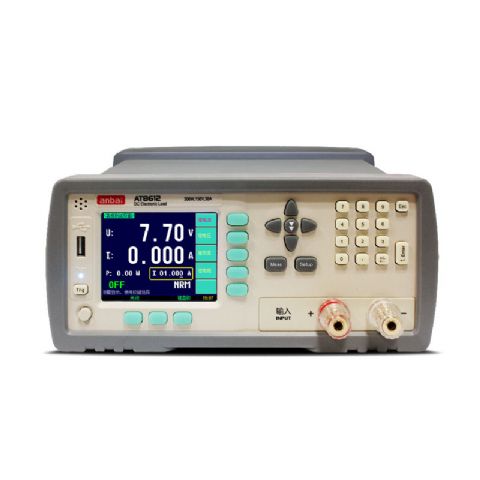

 Product Details ROKTOOLS Programmable DC Electronic Load
Whats new in the tester:
300W, 150V, 30A input rating
CC, CV, CP and CR load modes
6 measurement modes: NRM, TRN, SEQ, ATF, BAT and SHT
High accuracy 0.1% 0.05%
RS232C, USB and handler interfaces
SCPI programming language
Battery testing
VFD full colour screen
English and chinese
Fast sample rating interchangeable
Package list:
AT8612 DC Electronic Load
Printed Manual
Test Leads
RS232 Cable
Calibration/Test Data Sheet
Specification:
Temperature: 23°C±5°C
Humidity: ≤65% R.H.
Correction: Short-circuit Clear Zero
Warming Time: >60min
Adjustment Time: 12months
Sampling rate: Slow: 3t/s, Medium: 5t/s, Fast: 10t/s
Fuse type: UL/CSA type, Slow-Blow, 5×20-mm miniature fuse, 0.5A, 250 V
AT8612: 300W/150V/30A
| Constant Current Mode (CC) |
Measurement Range |
0 to 3A |
0 to 30A |
| Resolution |
0.0001A |
0.001A |
| Basic Accuracy |
0.1%+0.1%FS |
0.2%+0.1%FS |
| Constant Voltage Mode (CV) |
Measurement Range |
0 to 18V |
0 to 150V |
| Resolution |
0.001V |
0.01V |
| Accuracy |
0.05%+0.02%FS |
0.0%+0.025%FS |
| Constant Power Mode (CW) |
Measurement Range |
0 to 100W |
100 to 300W |
| Resolution |
0.001W |
0.01W |
| Accuracy |
1%+0.1%FS |
1%+0.1%FS |
| Constant Resistance Mode (CR) |
Measurement Range |
0.1 to 99Ω |
100 to 4KΩ |
| Resolution |
0.01Ω |
1Ω |
| Accuracy |
1%+0.3%FS |
1%+0.8%FS |
| Voltmeter |
Measurement Range |
0 to 18V |
0 to 150V |
| Resolution |
0.001V |
10mV |
| Accuracy |
0.05%+0.02%FS |
0.05%+0.025%FS |
| Ammeter |
Measurement Range |
0 to 3A |
0 to 30A |
| Resolution |
0.0001A |
0.001A |
| Accuracy |
0.1% + 0.1% FS |
0.2% + 0.3% FS |
| Short-Circuit Test |
Short Circuit Current |
=30A |
| Internal Resistance |
=40mΩ |
| Battery Test |
Capacity |
999.99AH |
| Discharge Time |
999H |
| General Specifications |
| Display |
True colour TFT-LCD
Size: 3.5" |
| Rating Power |
300W |
| Rating Voltage |
0.1 to 150V |
| Rating Current |
0 to 30A |
| Display Parameters |
Voltage, current, power, resistance, battery capacity and battery discharge time |
| Measurement Speeds |
Fast: 10t/s
Medium: 5t/s
Slow: 3t/s |
| Trigger Modes |
Internal, BUS and External Trigger |
| Sequence List Function (SEQ) |
0.1Hz to 1kHz
10 files and 99 steps/file |
| Automatic Testing Function (ATF) |
10 files and 20 steps/file |
| Interface |
Remote sensing, external trigger, built-in RS-232C, RS-485 (optional) |
| Programming Language |
SCPI |
| Operating Temperature/Humidity |
10 to 40°C, 10 to 80% RH |
| Storage Temperature/Humidity |
0 to 50°C, 10 to 90% RH
|
| Power Supply |
110/220V, 48.5Hz to 62.5Hz |
| Fuse |
250V 1A Slow-blow |
| Maximum Rated Power |
15VA |
| Weight |
5kg, net |
|
|
