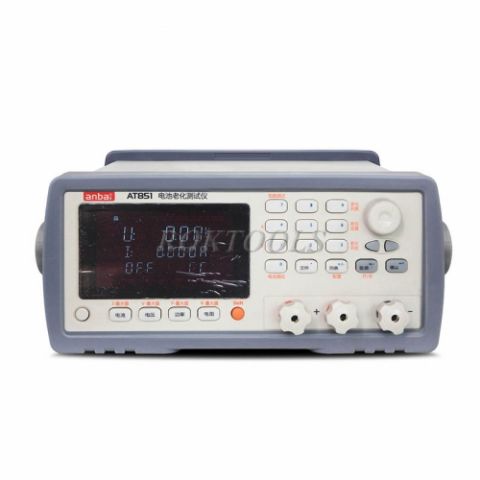

Electronic Load Battery Aging Tester
Main Specification
- DC INPUT RATE: AT8511:150W/120V/30A，8512：300W/120V/30A
- CONSTANT CURRENT: 0~30A Accuracy:0.2%
- CONSTANCE VOLTAGE: 0~120V Accuracy: 0.1%
- CONSTANCE POWER: 0~150W(AT8511), 0~300W(AT8512) Accuracy:1%
- CONSTANCE RESISTANCE：0~4000Ω Accuracy: 1%
- Battery Aging Test: Discharge – Charge – Rest
- Battery Aging Charge and Rest Timer: 9999 minutes
- Battery Capacity: 999.99AH
- Battery Discharge Timer: 999H
- Maximum Loop Times: 999 times
-Display: Vacuum-Fluorescent-Display (4-Colors VFD)
-Size: 98x55mm Rating Power: 330W
-Rating Voltage: 0V~120V
-Rating Current: 0A~30A
-Display Parameter: Voltage, Current, Power, Resistance,
-Battery Capacity and Battery Discharge Time.
-BatteryAging Test: Discharge – Charge – Rest Battery
-Aging Charge and Rest Timer: 9999 minutes
-Battery Capacity: 999.99AH Specification 31 Battery -Discharge Timer: 999H
-Maximum Loop Times: 999 times
-Environment： Temperature and humidity range：18℃~28℃, 80% RH or less
-Operating temperature and humidity range：10℃~40℃,10~90% RH
-Storage temperature and humidity range: 0℃~50℃,10~90% RH
-Power Supply： 110V/220V AC, 48.5Hz ~ 52.5Hz
-Fuse: 1A Slow-Blow
-Maximum rated power：15VA
-Weight： 6kg, net
