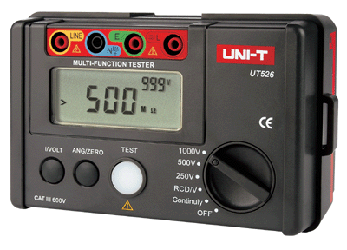

Electrical Testers UT526

Product Name: Electrical Testers UT526

Product Numbers: UT526

Product Specifications: AC or DC Judgment

Product Unit: Phase Switch

Product Remark: China Exporter, manufacturer

Product Class:Measuring and Testing Instruments > Electronic test Instruments > Electrical Testers

Product Details

【DateTime:2011-07-19 Browse:】【Font: Big Mid Small】【Print】【Close】

SPECIFICATIONS

Special Functions
Basic Functions	Measuring Range	Best Accuracy
Insulation Resistance Measurement	Test Voltage 250V/500V/1000V	±(10%+0)
	Test Current 100V (R=100kW); 1mA 250V (R=250kW); 1mA 500V (R=500kW); 1mA 1000V (R=1MW); 1mA	±(10%+0) ±(10%+0) ±(10%+0) ±(10%+0)
	Test Current Short Circuit <2mA	YES
	250V 0.05MW ~ 200MW 500V 0.05MW ~ 300MW 1000V 0.05MW ~ 500MW	±(5%+5) ±(5%+5) ±(5%+5)
RCD	Operational Voltage 220V±10% / 45Hz ~ 65Hz	YES
	Test Current 10mA/30mA/100mA/300mA	0~10%
	Trip Time 0ms--2000ms, 1△n General (10mA)	±(5%+2)
Earth Resistance Measurement	Test Voltage Around 5.0V	YES
	Test Current >200mA (R<2W)	YES
	Continuity Resistance Range 0.00W ~ 2000W (UT526)	±(2%+5)
Voltage Measurement	AC/DC Voltage 0~440V	±(2%+3)
Voltage Measurement	Frequency	Reference Only
AC or DC Judgment	Voltage Measurement	YES
Test Light		YES
Phase Switch (RCD)	0° and 180°	YES
Low Battery Display		YES

GENERAL CHARACTERISTICS

Power	1.5V Battery x 6
LCD Size	71 mm x 34 mm
Product Color	Red & Grey
Product Net Weight	380g
Product Size	160 x 100 x 71 mm
Standard Accessories	Test Lead, Battery, English Manual, Carrying Bag, Alligator Clip
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	20 pcs
Standard Carton Measurement	400 x 430 x 335 mm (0.063 CBM Per Export Carton)
Standard Carton Gross Weight	16kg
