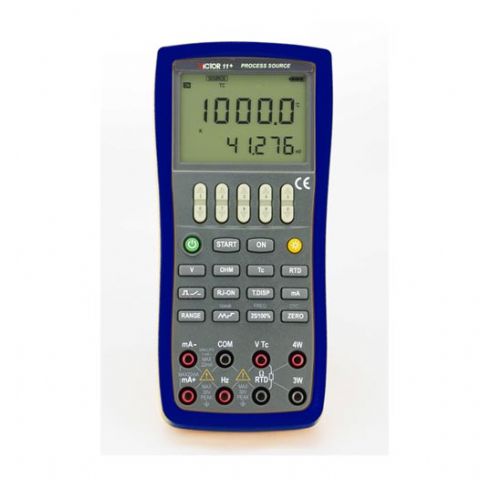

Process Calibrator
Features;
-High Accuracy of 0.02% for source, 6 digits display for source.A dual,
-Liquid Crystal Display;White LED for backlight
Project |
The peference model Performance parameters
|
VICTOR 11+ |
VICTOR 14+ |
VICTOR 15+ |
Source |
DC millivolt |
Range |
-10 ~ 1100mV |
-10.000~100.000mV |
-10 ~ 1100mV |
Accuracy= ±(% of the set value+% of range) |
0.02%+0.01% |
0.02%+0.01% |
0.02%+0.01% |
Resolution |
1uV |
1uV |
0.01mV |
DC voltage |
Range |
-1 ~ 11V |
-0.1 ~ 1V |
-1 ~ 11V |
Accuracy= ±(% of the set value+% of range) |
0.02%+0.01% |
0.02%+0.01% |
0.02%+0.01% |
Resolution |
0.1mV |
10uV |
0.1mV |
DC current |
Range |
0 ~ 22mA |
/ |
0 ~ 22mA |
Accuracy= ±(% of the set value+% of range) |
0.02%+0.02% |
0.02%+0.02% |
Resolution |
1uA |
1uA |
Sink current |
Range |
0 ~ 22mA |
/ |
0 ~ 22mA |
Accuracy ±(% of the set value+% of range) |
0.02%+0.02% |
0.02%+0.02% |
Resolution |
1uA |
1uA |
External power supply |
5 ~ 28V |
5 ~ 28V |
Resistance |
Range |
0 ~ 40KΩ |
0 ~ 4KΩ |
/ |
Accuracy= ±(% of the set value+% of range) |
0.02%+0.02% |
0.02%+0.02% |
Resolution |
0.01Ω/0.1Ω/1Ω |
0.01Ω/0.1Ω |
Frequency |
Range |
1Hz ~100KHz |
/ |
1Hz ~10KHz |
Accuracy |
±2words |
±2words |
Resolution |
0.01Hz/1Hz/0.1KHz/2KHz |
0.01Hz/1Hz/0.1KHz/2KHz |
Pulse |
Frequency |
1Hz ~10KHz |
/ |
1Hz ~10KHz |
Range |
1 ~100000cyc |
1 ~100000cyc |
Accuracy |
±2words |
±2words |
Resolution |
1cyc |
1cyc |
Switch |
Range |
1Hz ~100KHz |
/ |
/ |
Accuracy |
±2words |
Resolution |
0.01Hz/1Hz/0.1KHz/2KHz |
Thermocouple |
Range |
10types(R/S/K/E/J/T/B/N/L/U) |
10types(R/S/K/E/J/T/B/N/L/U) |
/ |
Accuracy |
0.4℃ |
0.4℃ |
Resolution |
0.1℃/1℃ |
0.1℃/1℃ |
RTD |
Range |
6types(Pt100/Pt200/Pt500/ Pt1000/Cu10/Cu50) |
6types(Pt100/Pt200/Pt500/ Pt1000/Cu10/Cu50) |
/ |
Accuracy |
0.2℃ |
0.2℃ |
Resolution |
0.1℃ |
0.1℃ |
Measure |
DC millivolt |
Range |
/ |
-5 ~ 550mV |
-20 ~ 220mV |
Accuracy= ±( % of Reading+ % of Range) |
0.02%+0.01% |
0.02%+0.02% |
Resolution |
1uV/10uV |
0.01mV |
DC voltage |
Range |
/ |
/ |
-5 ~ 55V |
Accuracy= ±( % of Reading+ % of Range) |
0.02%+0.01% |
Resolution |
0.1mV/1mV |
DC current |
Range |
/ |
/ |
-4 ~ 55mA |
Accuracy= ±( % of Reading+ % of Range) |
0.02%+0.01% |
Resolution |
1uA |
Resistance |
Range |
/ |
0 ~ 5.5KΩ |
/ |
Accuracy= ±( % of Reading+ % of Range) |
0.05%+0.02% |
Resolution |
0.01Ω/0.1Ω |
Frequency |
Range |
/ |
/ |
3 ~50KHz |
Accuracy |
±2words |
Resolution |
0.01Hz/0.1Hz/1Hz |
Switch |
Range |
/ |
/ |
CLOSE/OPEN |
Threshold |
200 ~300Ω |
Pressure |
Range |
/ |
/ |
Depends on the pressure module |
Accuracy= ±( % of Reading+ % of Range) |
Depends on the pressure module |
Resolution |
5 digit display |
Loop power supply |
Range |
/ |
/ |
24V |
Accuracy |
±10% |
The maximum current |
22mA |
Thermocouple |
Range |
/ |
10types(R/S/K/E/J/T/B/N/L/U) |
/ |
Accuracy |
0.7℃ |
Resolution |
0.1℃/1℃ |
RTD |
Range |
/ |
6types(Pt100/Pt200/Pt500/ Pt1000/Cu10/Cu50) |
/ |
Accuracy |
0.5℃ |
Resolution |
0.1℃ |
Continuity beeper |
Range |
/ |
0 ~500Ω |
/ |
Accuracy |
≤50Ω Sound |
≤250Ω Sound |
Resolution |
0.01Ω |
/ |
Other functions |
Backlight |
√ |
√ |
√ |
Auto Power-off |
√ |
√ |
√ |
Charging function |
√ |
√ |
√ |
Room temperature display |
√ |
√ |
√ |
Battery detection |
√ |
√ |
√ |
Communication function |
RS232 serial communication, can realize remote control instrument by the device driver software |
The mathematical treatment |
Data hold、zero、average |
Data hold、zero、average |
Data hold、zero、average |
Characteristic |
Safety |
EN61010-1:2001 |
EN61010-1:2001 |
EN61010-1:2001 |
Insulation |
DC500V /50MΩ |
DC500V /50MΩ |
DC500V /50MΩ |
EMC |
EN61326-1:2006 |
EN61326-1:2006 |
EN61326-1:2006 |
Authentication |
CE |
CE |
CE |
Display |
Double display on the LCD screen |
Double display on the LCD screen |
Double display on the LCD screen |
Power supply |
4×1.5V AAA alkaline battery |
4×1.5V AAA Alkaline battery |
4×1.5V AAA Alkaline battery |
Size |
205 × 95 × 42 mm |
205 × 95 × 42 mm |
205 × 95 × 42 mm |
Weight |
About 500g |
About 500g |
About 500g |
Standard Quantity Per Carton |
10pcs |
10pcs |
10pcs |
Standard Carton Measurement |
395mm*385mm*260mm |
395mm*385mm*260mm |
395mm*385mm*260mm |
Standard Carton Cross Weight |
10.4Kg |
10.3Kg |
11.5Kg |
Other feature:
1、Temperature Coefficient: 0.1 times the applicable accuracy,specification per degree
C for 5℃to 18℃and 28℃to 50℃.
2、The range of the internal temperature compensation sensor is
from 0℃to 40℃, Compensation error ≤±0.5℃.
3、The accuracy of the temperature probe: ±0.2℃.
The range of the measured temperature is form -20℃-100℃.
4、Maximum voltage between any output terminal and earth: 30Vp-p
5、Maximum output current: Approximately 25mA.
