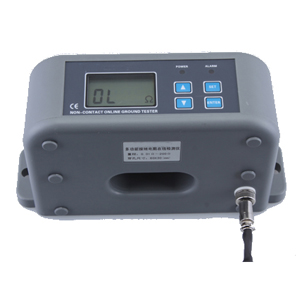

Non-Contact Grounding Resistance Online Tester (with Display)
Zoom Browse
Product Name: Non-Contact Grounding Resistance Online Tester (with Display)
Product Numbers: EGRT-1429
Product Specifications: 0.01Ω~200Ω
Product Unit: Resolution 0.001Ω
Product Remark: with Alarm and display
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Earth Ground Testers
Product Details
【DateTime:2013-09-03 Browse:】【Font: Big Mid Small】【Print】【Close
Non-Contact Grounding Resistance Online Tester (with Display)
This product is designed forGrounding resistance test, invulnerable to high or low temperature,corrosion,fire. Non-contact measurement, safe and reliable, Easy of installation
Grounding down lead goes directly through the detector perforation, not affecting lightning protection grounding effect and the normal operation of the facilities
With display and Alarm, it is enable to observe the resistance  and  preset Max value
Application:

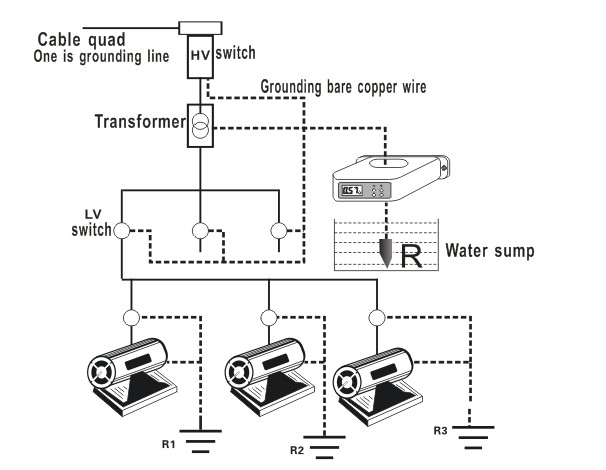

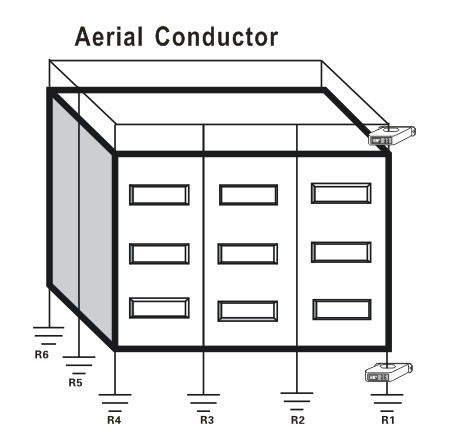

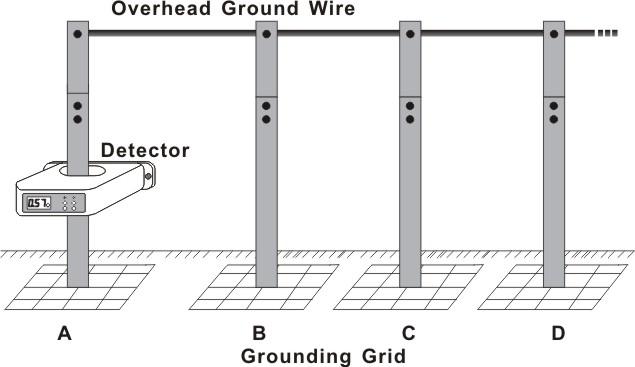

Electric transmission line pole grounding
Underground mine device grounding
Petrochemical engineering ground

Provides power supply and RS485 signal interface, and standard MODBUS-RTU communication protocol,which user can do secondary development to realize remote monitoring.

Technical Specifications
Functions
Return circuit ground resistance, metallic return connection resistance, grounding conditions on-line monitoring
Power Supply
6VDC~9VDC, 50mA Max.
Resistance Range
0.01Ω~200Ω
Resolution
0.001Ω
Accuracy
±2%rdg±3dgt(20℃±5℃, below70%RH)
Grounding Wire Perforation Size
60mm×30mm, closed mode (60mm×4mm steel flat or external diameterФ30mm electric cable)
Connecting Line
A one meter long wire (5cores shielded wire)
Connection Identifier
Red/brown---power supply input anode.
Black--- power supply input cathode
Blue---RS485 signal anode.
Grey---RS485 signal cathode.
White--- analog grounding (power supply input cathode can connects with analog grounding by short circuit connection).
Communication Protocol
RS485 standard MODBUS-RTU communication protocol
Detector Dimensions
175mm×170mm×130mm
Installing Screw Hole Size
Φ8mm
Quality
Detector:960g
Working Temperature And Humidity
-10℃~40℃; 20%RH~90%RH
Humiture Error
Within 5%
Shift
Automatic shift
GND Interference Current
Prohibited
External Magnetic Field
<40A/m
External Electric Field
<1V/m
Single Measurement Of Time
About 0.5 second
Power Consumption
50mA Max.
Installation
Grounding wire through Detector centre bore
Level Of Protection
IP65
Installation Requirements
Avoid rain and water logging
Power Supply Mode
External power supply (Equipped by user)

Application

2

3
