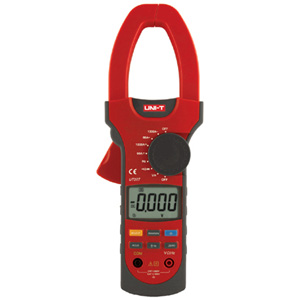

Digital Clamp Multimeters UT207
Zoom Browse
Product Name: Digital Clamp Multimeters UT207
Product Numbers: UT207
Product Unit: Auto Ranging
Product Remark: ACA & DCA Clamp Meters with True RMS
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Clamp Meters
Product Details
【DateTime:2011-07-19 Browse:】【Font: Big Mid Small】【Print】【Close
Digital Clamp Multimeter Model UT207/UT208are 3 5/6 digits with steady operations, fashionable structure and highly reliablemeasuring instrument. The Meter uses large scale of integrated circuit with double
integrated A/D converter as its core and has full range overload protection. The Meter can measure AC/DC Voltage, AC/DC Current, Frequency, Duty Cycle, Resistance, Diodes, Continuity, Surge Current and etc.
SPECIFICATIONS
Basic Functions Range Best Accuracy
DC Voltage 6.6V/66V/600V ±(0.8%+1)
AC Voltage 6.6V/66V/600V ±(1.2%+5)
DC Current 66A/1000A ±(1.5%+8)
AC Current 66A/1000A  ±(2%+8)
Resistance 660W/6.6kW/66kW/660kW/
6.6M
W/66MW
±(1%+2)
Temperature

-40°C~1000°C
-40°F~1832°F


Frequency

660Hz/6.6kHz/66kHz/660kHz/
6.6MHz/66MHz

±(0.1%+3)
Duty Cycle 0.1% ~ 99.9% YES
Special Functions
Auto Ranging         YES
Diode         YES
Continuity Buzzer         YES
True RMS AC Voltage YES
Surge Current AC Current YES
Max/Min Mode         YES
Data Hold         YES
Sleep Mode         YES
Display Backlight         YES
Full Icon Display         YES
Low Battery Display         YES
Input Impedance for AC Voltage Measurement Around 10MW  YES
Max. Display 6666 YES
GENERAL CHARACTERISTICS
Power 9V Alkaline Battery (1604A or 6LF22)
LCD Size 47 x 30mm
Product Color Red and Grey
Product Net Weight 533g
Product Size 286 x 105 x 45mm
Standard Accessories Test Lead, Alkaline Battery, English Manual, Tool Box
Standard Individual Packingt Gift Box
Standard Carton Gross Weight 5pcs
Standard Carton Gross Weight 480 x 372 x 315mm (0.056 CBM Per Standard Carton)
Standard Carton Gross Weight 11kg
