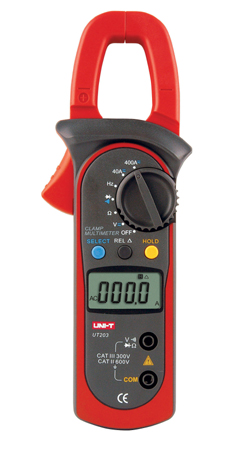

Digital Clamp Multimeters UT203
Zoom Browse
Product Name: Digital Clamp Multimeters UT203
Product Numbers: UT203
Product Specifications: Max. Display 3999
Product Remark: ACA & DCA Clamp Meters
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Clamp Meters
Product Details
【DateTime:2011-07-19 Browse:】【Font: Big Mid Small】【Print】【Close

Digital Clamp Multimeter Model UT203/UT204 are 3 3/4 digits with steady operations, fashionable structure and highly reliable measuring instrument. The Meter uses large scale of integrated circuit with double integrated A/D converter as its core and has full range overload protection. The Meter can not only measure AC/DC Voltage, AC/DC Current, Frequency, Duty Cycle, Resistance, Diodes, Continuity but also it has Data Hold, Sleep Mode and Relative Mode features.
SPECIFICATIONS
Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/600V ±(0.8%+1)
AC Voltage 4V/40V/400V/600V ±(1%+5)
DC Current 40A/400A ±(2%+3)
AC Current 40A/400A ±(2.5%+5)
Resistance 400W/4kW/40kW/400kW/4MW/40MW ±(1%+2)
Frequency 10Hz~1MHz ±(0.1%+3)
Duty Cycle 0.1%~99.9% YES
Special Functions
Auto Ranging         YES
Diode         YES
Continuity Buzzer         YES
Relative Mode         YES
Data Hold         YES
Sleep Mode         YES
Low Battery Display         YES

Input Impedance for
DC Voltage Measurement

≥10MW
YES
Max. Display         3999
GENERAL CHARACTERISTICS
Power 9V Battery (6F22)
LCD Size 36 x 18mm
Product Colour Red and Grey
Product Net Weight 200g
Product Size 210 x 76 x 30mm
Standard Accessories Test Lead, English Manual, Carrying Bag
Standard Individual Packing Gift Box
Standard Quantity Per Carton 40pcs
Standard Carton Measurement

535 x 490 x 330mm
(0.087 CBM Per Standard Carton)

Standard Carton Gross Weight 15kg
