Large Caliber Leakage Clamp Meter’s clamp core is made of special alloy, adopt the latest magnetic shielding techniques, can almost shield the influence from external magnetic field, to ensure the high precision, high stability and high reliability of perennial uninterrupted measurement. The meter can store 200 sets of data, with RS232 interface, upload stored data to the computer through the system software, implementing online real-time monitoring, historical inquires, dynamic display. With the function of historical data read, preserve, print, and backlight, data hold, etc. It is a necessary tool for electrical safety testing

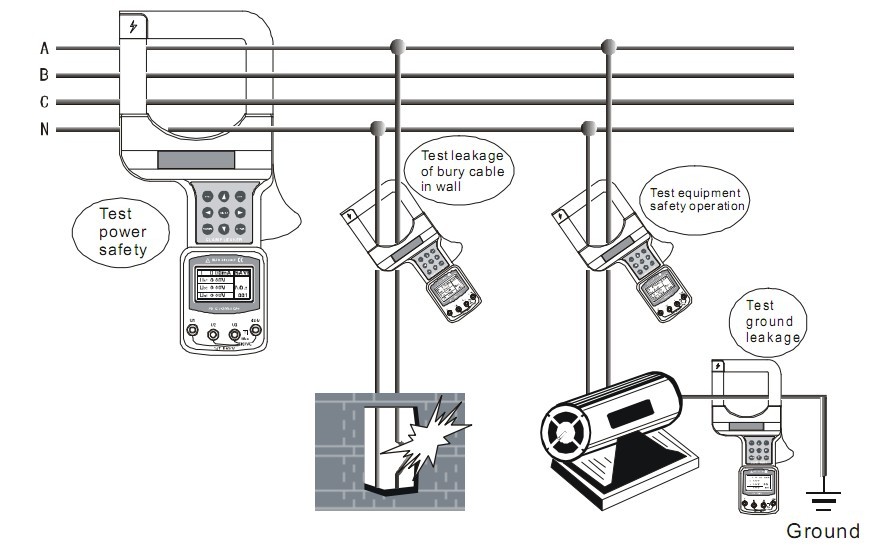

Large Caliber Leakage Clamp Meter is well designed and manufactured for measuring AC leakage current, current, voltage, adopt the latest CT technology and digital integrated technology. Its large caliber 80mm×80mm can clamp electric cable of 80mm diameter, or 96mm×4mm flat cable and steel earth wires. Full automatically and simultaneously measure one leakage current and three voltages, all the data are displayed in the screen, which is very clear and convenient. The meter is widely used in electric power, communication, meteorology, railway, oil field, architecture, measuring, teaching research unit, industrial mining enterprises, etc.
Measure AC leakage current, current, there-phase, voltage
Clamp CT, integral mode
0.0mA～2500A
Measured wire at approximately the geometric center of the clamp
RS232 communication wire, 1.8m
Technical Specifications
|
Function
|
Measure AC leakage current, current, there-phase, voltage
|
|
Power
|
6V DC(LR6×4 alkaline dry batteries, continuously working for 12 hours)
|
|
Test Mode
|
Clamp CT, integral mode
|
|
Clamp Size
|
80mm×80mm(can clamp electric cable of 80mm diameter, or 96mm×4mm flat cable and steel earth wires)
|
|
Current Range
|
0.0mA～2500A
|
|
Current Resolution
|
0.1A
|
|
Voltage Range
|
0.00V～600V
|
|
Voltage Resolution
|
0.01V
|
|
Measurement Accuracy
(23℃±3℃, below 70%RH, measured wire at the center of the clamp)
|
0.00mA～300A: ±1.5%±3dgt
|
|
300A～1200A: ±2%±3dgt
|
|
1200A～2500A: ±3%±3dgt
|
|
0.00V～600V: ±1.5%±3dgt
|
|
Measured Wire Position
|
Measured wire at approximately the geometric center of the clamp
|
|
Data Storage
|
200 sets, “FULLthe memory is full ” symbol indicate
|
|
RS232 Interface
|
With RS232 interface, download data to computer for analysis and management
|
|
Communication Wire
|
RS232 communication wire, 1.8m
|
|
Frequency
|
50Hz ,60Hz automatic identification
|
|
Gear Shift
|
Automatic shift
|
|
Sample Rate
|
About 2 times/second
|
|
Line Voltage
|
Below AC 600V line measurement
|
|
Display Mode
|
LCD: 128dots×64dots; Display area: 43mm×29mm
|
|
Meter Size
|
Length 275mm × Width 145mm × Height 40mm
|
|
Backlight
|
Controlled by LIGHT key
|
|
Data Hold
|
“HOLD symbol appears”
|
|
Overflow
|
“OL symbol appears”
|
|
Automatic Shutdown
|
Automatically shutdown about 15 minutes after power on to reduce battery consumption
|
|
Voltage Detection
|
Low battery symbol appears to remind the replacement of battery when the battery voltage drops below 5.2V.
|
|
Weight
|
1kg(with batteries and accessories)
|
|
Working Current
|
50mA with enabled backlight; 25mA with disabled backlight
|
|
Working Temperature and Humidity
|
-10℃～40℃; 80%rh
|
|
Storage Temperature and Humidity
|
-10℃～60℃; below 70%rh
|
|
Insulation strength
|
AC 2kV/rms(between core and shell)
|
|
Safety Specifications
|
IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT Ⅲ(600V)
|
|
Accessories
|
Main Unit: 1 pc; Test Line: 4 pcs (3 red, 1 black); RS232 Data Line: 1 pc; Disk: 1 pc; Battery: 4 pcs(Alkaline Dry Battery LR6); Meter Box: 1 pc; User Manual: 1 pc; Guarantee Card: 1 pc; Certification: 1 pc.
|
