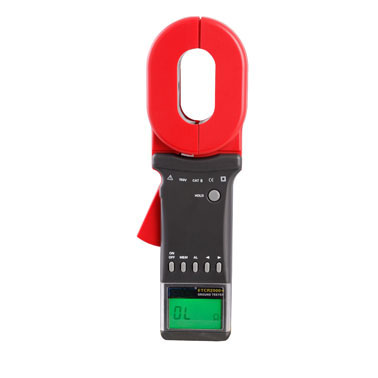

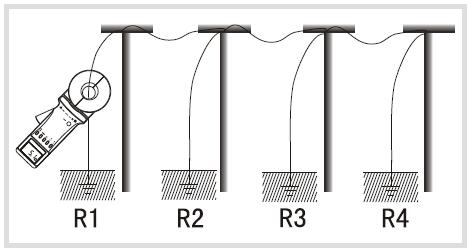

Clamp On Ground Earth Resistance Tester with RS232 is widely applied in ground resistance measurement, loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil field, architecture and industrial electrical equipment, etc. When measuring ground system with loop, there is no need to disconnect the ground wire without auxiliary electrode, which means safer and faster. it can measure the ground fault which can not be measured by traditional method, can apply in the occasion where traditional methods are unworkable; CLME-2002 Clamp Earth Resistance Tester measures the integrated value of ground resistance and resistance lead. What’s more, It can measure the leakage current of ground wire.
Characteristic:
ISO, Patent & CE certificate
OEM services available
Wider range: 0.01-1200ohm, 0.0mA-20A
Stored data: 99 groups
Resolution: 0.001ohm, 0.05mA
Size of Jaw: 65*32(mm)
Sound and light alarm
Breakthrough in self-test the boot a long time to wait, start immediately into the test.
Breakthrough relay self-test mode, using the most advanced processing algorithms and digital integration technology, a fully intelligent.
Break the old product to heavy issues, more in line with characteristics of handheld devices.
The new design, panel 6 button operation, the performance through.
Increase the interference signal recognition indicator.
Improved anti-jamming capability and test stability.
Lower power consumption: Maximum operating current not exceeding 50mA.
|
Function
|
Ground resistance test, Loop resistance test
|
|
Power Supply
|
6VDC 4 PCS of AA Alkaline batteries
|
|
Resistance Range
|
0.01-1200Ω
|
|
Resistance Resolution
|
0.001Ω
|
|
Highest Resistance Accuracy
|
±1%±0.01Ω
|
|
Current Range
|
0.00mA-20.0A
|
|
Current Resolution
|
0.05mA
|
|
Highest Current Accuracy
|
±2.5%±1mA
|
|
Data memory
|
99 Sets
|
|
Alarm Threshold Setting Range
|
Resistance: 1-199Ω
|
|
Alarm Sound and Light
|
“Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold.
|
|
Interference Signal Recognition
|
“Beep-beep-beep” tone, NOISE symbol blinking
|
|
Working Temperature and Humidity
|
-20℃-55℃；20％RH-90％RH
|
|
LCD Screen
|
4 Digits LCD display, Screen L×W: 47mm×28.5mm
|
|
Clamp Size
|
65mm×32mm
|
|
Clamp Opening Extent
|
32mm
|
|
Tester Weight
|
1160g (With batteries)
|
|
Clamp Dimension
|
L×W×T: 285mm×85mm×56mm
|
|
Protection Level
|
Dual Insulation
|
|
Structural Feature
|
Clamp CT
|
|
Shifting
|
Automatic shifting
|
|
External magnetic field
|
＜40A/m
|
|
External electrical field
|
＜1V/m
|
|
Single measurement time
|
0.5 second
|
|
Resistance measurement frequency
|
＞1KHz
|
|
Measured current frequency
|
50/60Hz Automatic measurement
|
|
Low Battery Indication
|
Low battery symbol displays when battery is lower then 5.3V
|
|
Memory Full Indication
|
MEM symbol blinks when all 99 sets memory is full
|
|
Over Range Indication
|
Out of range indication “OLΩ”, “L0.01” or “OL A”
|
|
Auto Power-off
|
5 minutes after Boot up
|
|
Power Consumption
|
Max 50mA either in booting up or normally working, Continuously working for 30 hours
|
|
RS232 Interface (Optional)
|
The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files
|
|
Safety Provisions
|
IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
|
|
Accessories
|
Meter: 1 piece, Test ring: 1 Piece, Meter Suitcase: 1 Piece
|
