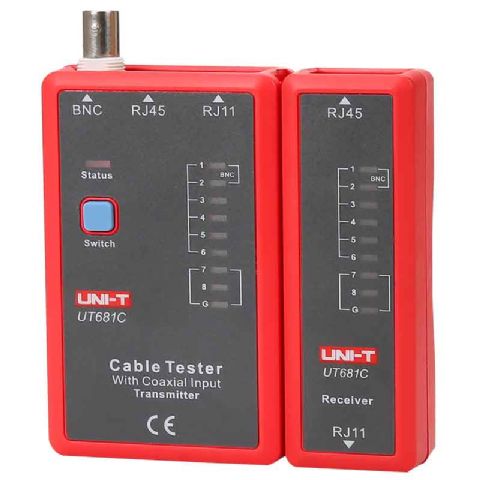

Open Short Crossovercircuit Cable Tester RJ45/RJ11/BNC
Features:
1. LED status display
2. Auto check of open/short/crossovercircuit
3. Fast/slow checking modes conversion
4. Single key operation
5. Manual/auto power off (after10-minute inactivity)
6. Low battery indication
7. Power supplied by 9V battery (Not included in the package)
Specification:
Working environment: Working temperature: 0-+40℃
Storage temperature: -10-+50℃
Working humidity: 20-80% RH
Storage humidity: 10-90% RH
| tem |
Function |
Model |
Description |
| UT681C |
| Test function |
To test for: RJ45/RJ11/BNC |
YES |
Need to use RJ45 to BNC adaptor |
| Fast test mode |
YES |
LED1~LED8, LED_G |
| Low test mode |
YES |
LED1~LED8, LED_G |
| To test for the case of short circuit, crossover, open circuit, etc. |
YES |
|
| Ethernet cable: shielded/unshielded test |
YES |
|
| Manual shutdown function |
YES |
|
| Auto shutdown function |
YES |
No operation within 10 minutes, the device will shut down automatically |
| Single key operation |
YES |
|
| Power supply: 9V battery |
YES |
|
| Low voltage detection |
YES |
About less than 7.2V |
| Application environment |
Working temperature: 0~40℃ |
YES |
|
| Storage temperature: -10-+50℃ |
YES |
|
| Working humidity: 20-80% RH |
YES |
|
| Storage humidity: 10-90% RH |
YES |
|
| Altitude: ≤2000 meters |
YES |
|
|
Safety
standard
|
CE EN61326-1: 2013;
EN61326-2-2: 2013
|
YES |
|
