RJ45 Diagnose Tone BNC USB Metal Line LAN Network Cable Tester
Test port: RJ45, RJ11, BNC, USB
Wiremap test: RJ11,RJ45 ,BNC ,USB
Test length : RJ11,RJ45 ,BNC ,USB
Tracking Type : RJ45, RJ11, BNC ,USB, and Metal Cable
What is the cable tester used for?
1. Trace targeted cable among lots of unknown cables ;
2. Anti-jamming function to avoid current interference.
3. Locate faults for RJ11/RJ45/BNC/USB Cable;
4. Check crosstalk, open, short, cross;
5. Measure cable length accurately.
6. Memory and storage function ;
Attention:
1.Dont connect high voltage live lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
Specification:
|

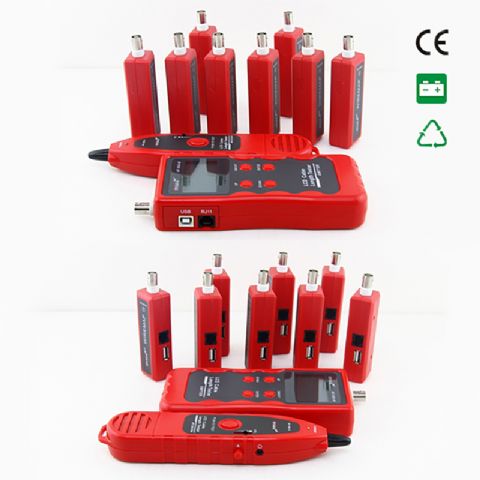

NF-868W Transmitter specifications
|
|
|
LCD screen
|
53x25mm
|
|
Tone frequency
|
130kHz
|
|
The Max. distance of tracing cable
|
2000m
|
|
The Max. distance of cable mapping
|
2000m
|
|
The Max. distance of cable length testing
|
1000m
|
|
Trace cable coonected to switch
|
Anti-jamming
|
|
Tone mode
|
2 Tones, adjustable
|
|
Compatible with connectors
|
RJ11,RJ45,BNC,USB
|
|
LED lights display
|
Wiremap, tone, tracing
|
|
Cable map indication
|
LCD (#1- #8)
|
|
Shielded indication
|
LCD (#9)
|
|
Low battery display
|
LCD (6.5V)
|
|
Battery type
|
DC9.0V（NEDA 1604/6F22 DC9V) x 1pc
|
|
Dimensions (LxWxD)
|
185 x 80 x 32mm
|
|
NF-868W Receiver specifications
|
|
|
Frequency
|
130kHz
|
|
The Max. working current
|
Less than 70mA
|
|
Earphone jack
|
1
|
|
LED illumination
|
2 LEDs
|
|
Battery type
|
DC9.0V（NEDA 1604/6F22 DC9V) x 1pc
|
|
Dimensions (LxWxD)
|
218 x 46 x 29mm
|
|
NF-868W Remote unit specifications
|
|
|
Remote indentifier
|
8 pcs
|
|
Compatible with connectors
|
RJ11,RJ45,BNC,USB
|
|
Dimensions (LxWxD)
|
107 x 30 x 24mm
|
