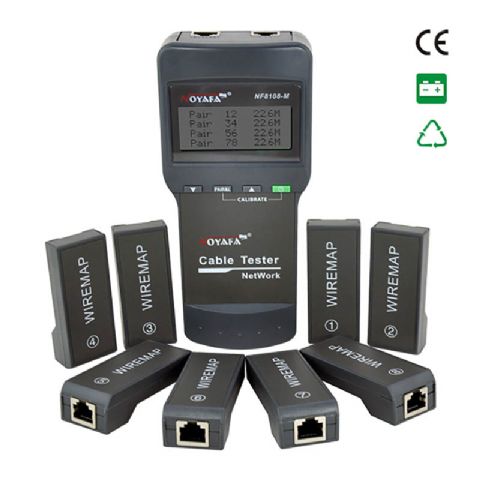

Cable Length Meter Coaxial Cable Tracker Tool RJ45 5E 6E
Features:
1. Measure network cable length and determine the distance of open and short circuit.
2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection
3. Portable unit with long battery life (Stand by 50 hours).
4. Automatically time-delay shut off.
5. Self-checking and automatically compensate any change in battery capacity or ambient temperature.
6. With 8 remote identifiers , more easy to work.
Specification:
|
NF8108-M Transmitter specifications
|
|
Indictor
|
LCD 53x25 mm
|
|
Tone frequency
|
225 Hz
|
|
Max. distance of cable map
|
1000m
|
|
Max. working current
|
Less than 70mA
|
|
Compatible connectors
|
RJ45
|
|
Faults LCD display
|
LCD display
|
|
Low battery display
|
LCD ( 6.5V)
|
|
Voltage protection
|
AC 60V/DC 42V
|
|
Battery Type
|
DC 4x1.5v
|
|
Dimension(LxWxD)
|
184x84x46mm
|
