| Product Name: Multifunction TDR Measure Length Network Cable Tester |
| Product Numbers: NF-8601S |
| Product Specifications: STP/UTP 5E,6E network , telephone , coaxial cable |
| Product Unit: Big LCD color screen 320*240 |
| Product Remark: Currency detection and lighting lamp |
| Product Class:Measuring and Testing Instruments > Electronic test Instruments > Cable Finder |
|
Product Details

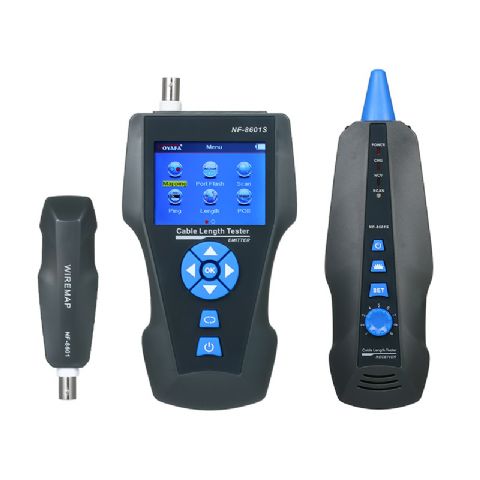

Multifunction TDR Measure Length Network Cable Tester
Specifications:
Material: ABS
Display: 2.8 inch LCD color screen(effective visible area 60x45mm)
Cable Types: STP/UTP cat5e, cat6, cat6a, cat7 network cable, telephone cable, coaxial cable and common metal wires connected with alligator clip.
Testing Device Interface: Main unit: RJ45(M), RJ45(S), POE/PING, RJ11, BNC ports. Remote identifier: RJ45, RJ11, BNC ports
Range: 1～1500m
Calibration precision: 2%(±0.5m or ±1.5feet); (calibration cable>50m)
Measurement Precision: 3%(±0.5m or ±1.5feet)
Display Unit: Meter, Foot, Yards
Working Temperature: -10～+60℃
Working Humidity: 20%～70%
Built-in Lithium Battery: Emitter: 1 * 3.7V 1800mAh; Receiver: 1 * 3.7V 1800mAh
Emitter Size: Approx. 17.3 * 9.2 * 3.4cm / 6.81 * 3.62 * 1.34in
Receiver Size: Approx. 18.3 * 5.8 * 3.5cm / 7.2 * 2.28 * 1.38in
Adapter Size: Approx. 10.6 * 3.2 * 3.0cm / 4.17 * 1.26 * 1.18in
Emitter Weight: Approx. 207g / 7.32oz
Receiver Weight: Approx. 120g / 4.24oz
Adapter Weight: Approx. 37g / 1.32oz
Package Weight: Approx. 776g / 28.38oz
Package Size: Approx. 27.2 * 20 * 9.3cm / 10.7 * 7.9 * 3.7in
Package List:
1 * Emitter
1 * Receiver
1 * RJ11 Cable
1 * RJ45 Cable
1 * Crocodile Clip Test Line
1 * Remote Adapter
1 * USB Cable
1 * TF Memory Card
1 * Carry Bag
1 * User Manual (English)
