Polarity Test Adjustable Network Cable Tester Phone Cable
Features:
This tester is for testing the continuity of network cable and fixed phone wire.
Check telephone line condition( clear, busy or ringing ) and polarity test.
Test telephone cable, network cable, video line, BNC cables and electric cables quickly and accurately.
Port flash function helps you directly find target cables connected with switch.
Premium material, compact design, your great helper of life.
Specifications:
Material: ABS
Main functions: Test continuity of network cable, fixed phone cable, BNC cable and electric cable
Transmitter Specifications
The max.distance of cable: 305m
Cable test types: RJ45, RJ11, BNC
Tone mode: 2 tone adjustable
Max.Signal voltage: 8Vp-p
Max.distance of transmission: 600m for RJ45 & RJ11, 100m for BNC
Port: RJ45, RJ11, BNC
AC anti-jamming: Yes
Protected against voltage: DC48V, 5mA
Power: 3.7V / 1000mAh li-ion battery(included)
Low voltage indicate: 3.6V
Size: 13.5 * 7.8 * 3.5cm / 5.31 * 3.07 * 1.38in
Receiver Specifications
Port: RJ45-8P
Power: 3.7V / 1000mAh li-ion battery(included)
Low voltage indicate: 3.6V
Size: 20.3 * 4.5 * 3.3cm / 7.99 * 1.77 * 1.30in
Item weight: 235g / 8.29oz
Package weight: 556g / 19.61oz
Package size: 22.7 * 13.4 * 6.5cm / 8.94 * 5.28 * 2.56in

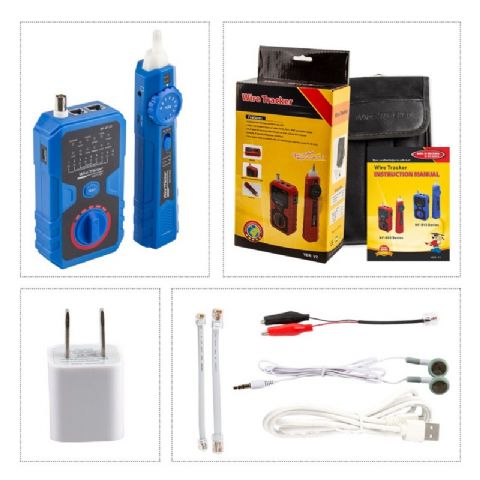

Package list:
1 * Transmitter
1 * Receiver
1 * Pair of earphone
1 * Set of RJ45 adapter cable
1 * Set of RJ11 adapter cable
1 * Cable clamp
1 * Charger
