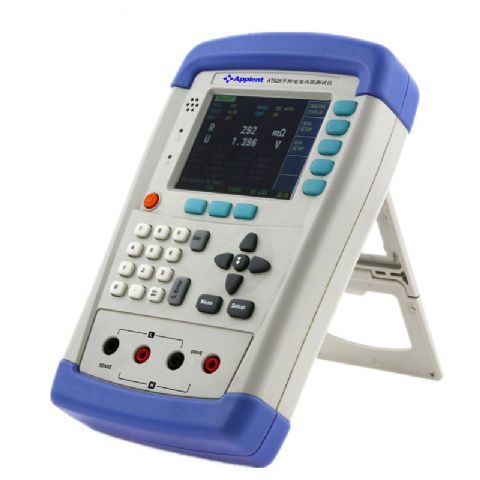

Application
● Internal resistance and voltage of the battery
● Alkaline batteries, lead batteries Life assessment
● UPS Online Measurement
● Batteries identification test
● Supper Capacitor ESR Measurement
● Contact resistance
Specification:
The following speed is measured in range-hold mode:
SLOW: 2 times/sec
MED: 10 times/sec
FAST: 20 times/sec
The following speed is measured in range-auto mode:
SLOW: 1.8 times/sec
MED: 6.8 times/sec FAST: 16 times/sec
Parameters |
AC resistance, DC voltage |
Accuracy |
R: 0.5%5dgt V: 0.2%5dgt |
Range |
R: 0.01m~2.000k V: 1mV~50V |
Signal Source |
AC: 1kHz Open-circuit Voltage: < 30mv Current: < 15mA |
Range |
Automatic, Manual, Nominal. 6 ranges |
Speed |
20 times/second, 10 times/second, 2 times/second |
Result Display |
ABS/PER/SEQ |
Display Max |
Resistance: 2200 Voltage: 5000 |
Adjustment |
Short-circuit reset for each range |
Comparator |
Voltage compare separately, resistance compare separately, voltage and resistance combination compare GD/NG sorting result display, beep |
Trigger |
Internal, Manual, Remote |
Interface |

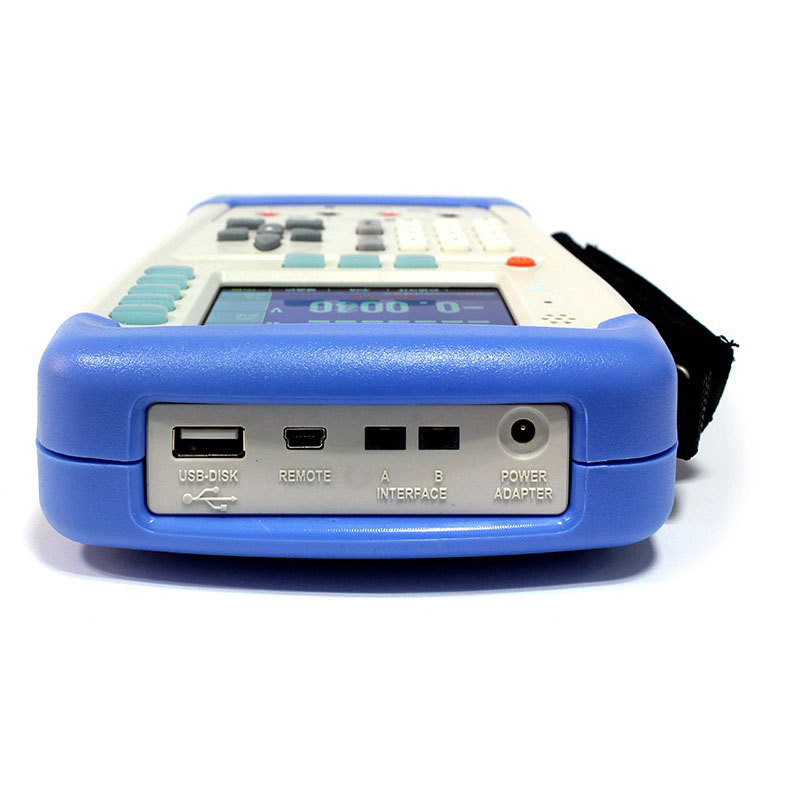

Build-in Mini-USB (virtual serial port); Charging Interface; U disc Interface |
|
Input: 100-240V~50/60Hz 0.35A Output: 9V 1A DC |
Dimension & Weight |
Outside(mm): 130.23 (Width)x210.76(Height)x37.88 (Depth) 650g |
Accessories |
ATL501B: Four-terminal Kelvin Test Clip ATL909: DC resistance adaptor ATL202: Carrying Case ATL804: Li- battery |
|
18650 Clip |
Others |
TFT-LCD display; Keypad lock; Data hold; Adjustable background light; Auto power off; Switch in both Chinese and English; |
Package:
ATL501B: Four-terminal Kelvin Test Clip
ATL909: DC resistance adaptor
ATL202: Carrying Case
ATL804: Li- battery
